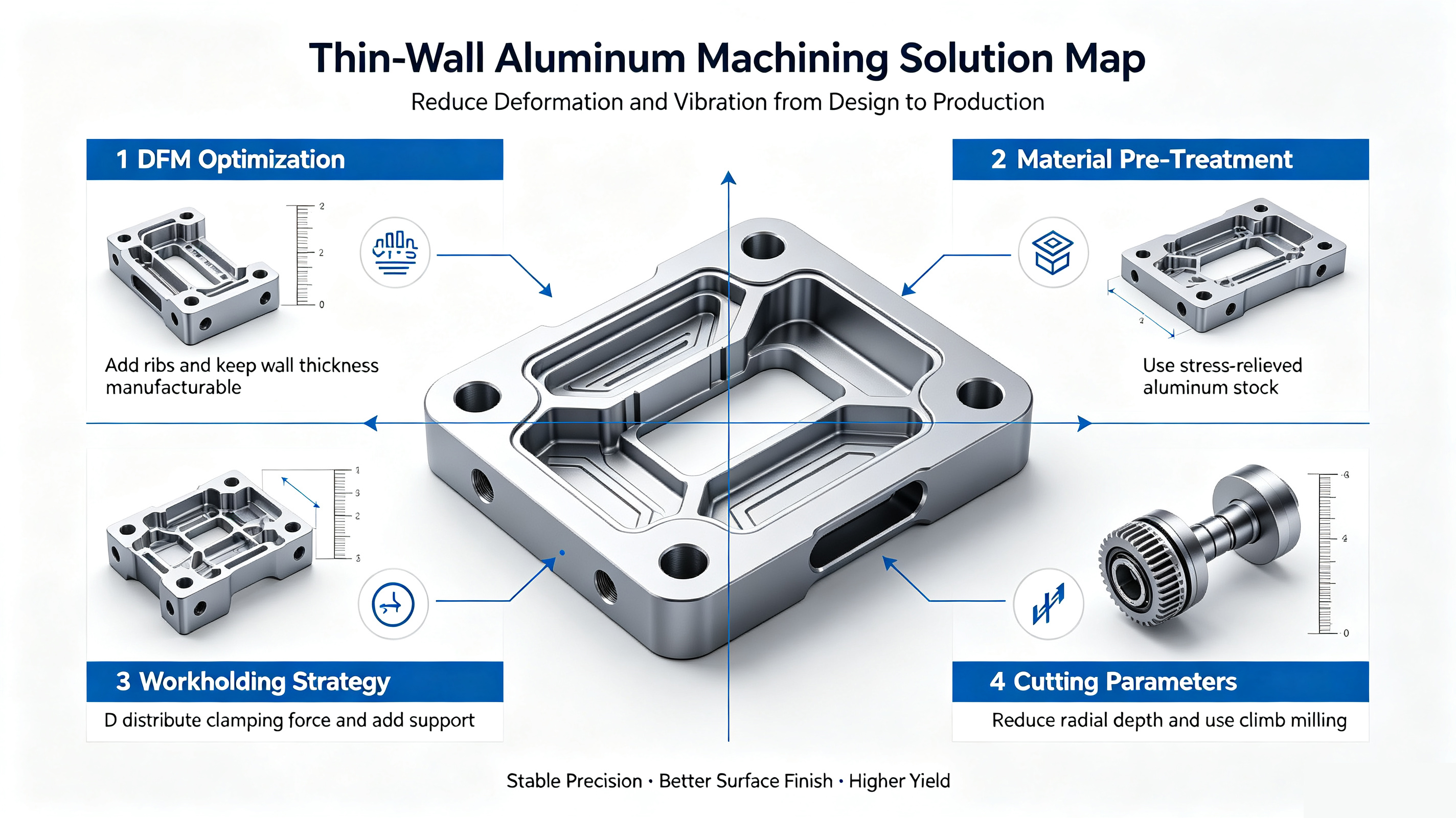

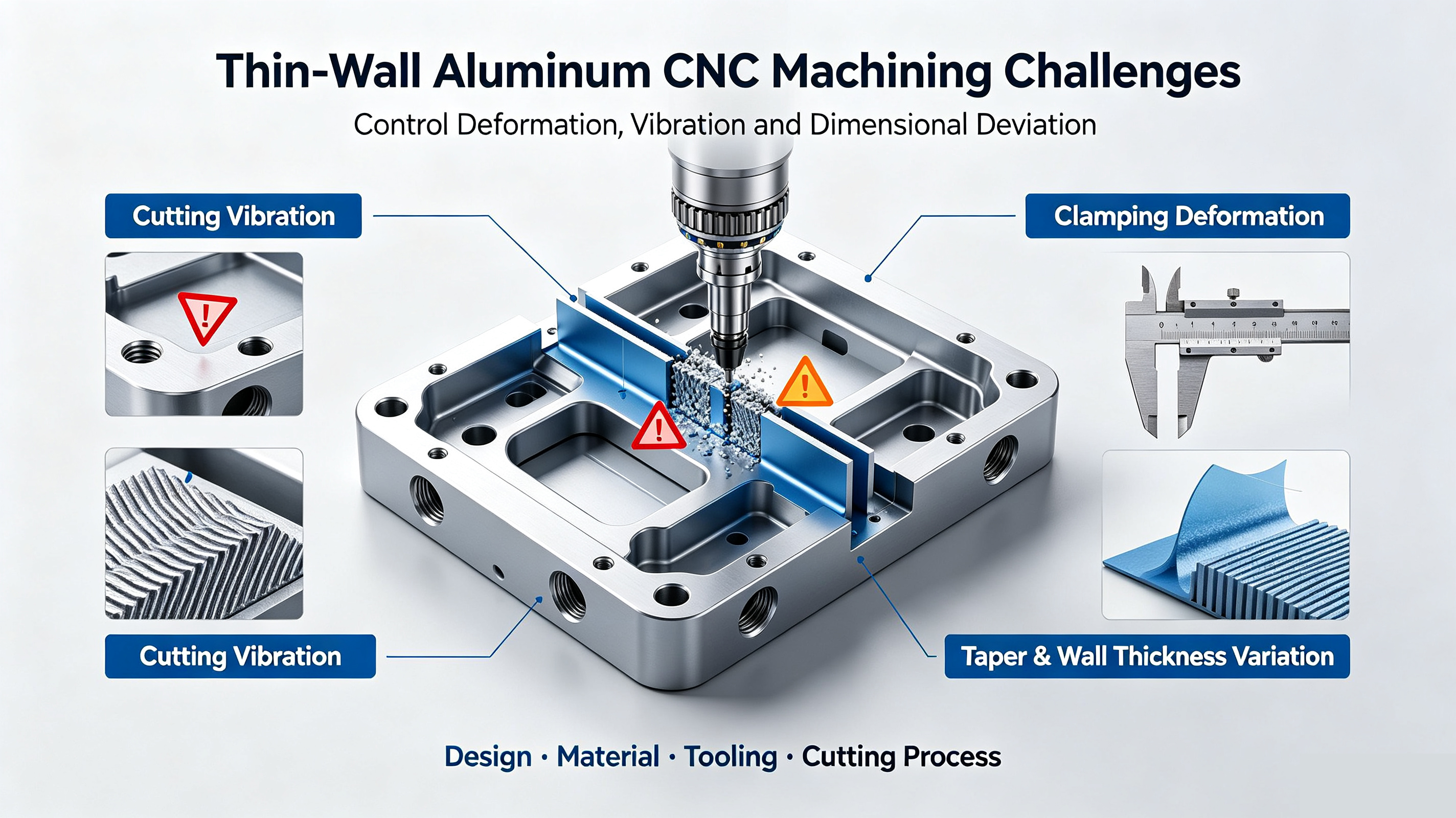

Thin-walled aluminum alloy parts are widely used in automation equipment, testing instruments, and prototype R&D projects. Aluminum alloys are lightweight and offer excellent machinability; however, thin-walled structures lack rigidity. During machining, they are affected by cutting forces, residual stresses, and clamping pressure, making them prone to tool deflection and cutting chatter. This ultimately leads to defects such as uneven wall thickness, taper, chatter marks, and dimensional deviations—typical technical challenges in high-precision CNC Milling. Many R&D drawings focus solely on functional implementation while neglecting the machining constraints of thin-walled structures. This often leads to low yield rates, repeated rework, and significantly increased costs once production begins. To ensure stable machining accuracy for thin-walled aluminum alloy parts, it is necessary to collaboratively optimize DFM design, blank material selection, tooling and fixtures, and cutting processes to systematically mitigate deformation and chatter issues. 一、DFM (Design for Manufacturability) Optimization: Reducing the Risk of Deformation and Chatter from the Design Stage
1. Set appropriate minimum wall thicknesses and add reinforcing structures
The rigidity of thin-walled aluminum alloy parts is directly related to wall thickness; the thinner the wall, the weaker the resistance to deformation. For conventional milling, a safe wall thickness of ≥0.8 mm is recommended; for structures with stringent precision requirements, prioritize a wall thickness of 1.2 1.5 mm or more; for areas where wall thickness cannot be increased, ribs and transition fillets can be strategically placed to enhance local rigidity and reduce cutting chatter. During the design review phase, avoid large areas of cantilevered thin-walled structures and slender cantilevered thin-walled structures, as these are prone to resonance during machining and are high-risk areas for the development of chatter marks and dimensional drift in CNC-milled parts.
2. Optimize Structural Layout to Balance Material Removal
Part structures should be designed to be as symmetrical as possible to ensure an even distribution of material removal and avoid stress imbalances caused by heavy cutting on a single side. For deep, thin-walled cavities, avoid sudden local thinning and ensure smooth transitions in wall thickness to reduce stress concentration. Good DFM design can significantly reduce subsequent machining difficulties, minimize investment in specialized tooling, and enable metal milling services to produce complex thin-walled parts using standard processes, thereby lowering the probability of scrap and rework.
二、Pre-processing of Raw Material to Release Internal Residual Stresses
1. Select aluminum alloy blanks that have undergone stress-relief aging
Internal residual stresses in aluminum alloy blanks are a major cause of gradual part deformation after machining. After substantial material removal from standard sheet stock, internal stresses are re-released, causing the part to warp or twist. Although dimensions may initially pass inspection, they may fall out of tolerance once the clamping fixture is released. When machining thin-walled aluminum alloy parts, prioritize the use of sheet stock that has undergone stress-relief aging treatment to preemptively release internal stresses and minimize post-machining dimensional drift.
2. Stress-Release Process Following Rough Machining
After the rough machining stage—which removes most of the material and leaves a small finishing allowance—the workpiece can be released from the fixture and allowed to rest for a period of time to let residual stresses release first. The workpiece is then realigned before proceeding with finishing operations, effectively preventing subsequent dimensional rebound issues. This process is widely used in various high-precision, custom-made parts, relying on a mature CNC Milling Service workflow that balances machining efficiency with long-term dimensional stability. 三、Optimizing Fixturing Solutions to Reduce Clamping Deformation
1. Distribute Clamping Forces to Avoid Localized Compression Deformation
Thin-walled aluminum alloys have low hardness; excessive localized clamping force can directly cause the part to deform due to compression and indentation. Fixture design should increase the contact area, distribute clamping points, and reduce single-point clamping pressure, while avoiding direct clamping on thin-walled, vulnerable areas. For cantilevered thin walls, auxiliary support blocks can be added to support the thin-walled sections during machining and suppress vibration and shaking.
2. Reuse Zero-Point Positioning and Modular Fixtures
Prioritize the use of zero-point positioning systems and universal modular fixtures to reduce cumulative errors caused by repeated disassembly, assembly, and positioning of parts. When machining requires multiple clamping operations, ensure consistent reference points to minimize positioning deviations. It is not recommended to custom-design complex, dedicated fixtures for small-batch thin-walled parts, as this directly increases customization costs; stable clamping for most thin-walled parts can be achieved through auxiliary support techniques.
四、Optimization of Cutting Process Parameters to Suppress Vibration and Deformation Caused by Cutting Forces
1. Layered Cutting to Reduce the Load per Cut
For thin-walled finishing operations, reduce the radial depth of cut and adopt a layered cutting strategy, removing a small amount of material per pass to minimize tool deflection caused by lateral cutting forces. For aluminum alloys, employ a high-speed, low-feed machining approach combined with adequate cooling to dissipate cutting heat and reduce thermal expansion deformation. For finishing side walls, prioritize up-milling, where the cutting forces are directed toward the part body, thereby reducing the outward deflection of the thin walls.
2. Optimal Selection of Cutting Tools and Toolpaths
Select short-overhang carbide end mills to minimize tool vibration; optimize toolpaths through CAM programming to avoid prolonged, continuous impact on thin-walled areas. Through process optimization, control deformation and chatter within tolerance limits to ensure dimensional consistency in batch production of thin-walled aluminum alloy parts.
五、Summary of Thin-Walled Aluminum Alloy Part Machining
Dimensional deviations in thin-walled aluminum alloy parts are rarely caused by a single factor; they result from the combined effects of design, material, clamping, and machining processes. Relying solely on adjusting machining parameters makes it difficult to completely resolve the issue. It is essential to conduct a DFM drawing review in advance and combine it with stress-relieved blanks, appropriate fixtures, and optimized cutting solutions to effectively suppress deformation and chatter, thereby achieving high-precision, high-yield custom machining of thin-walled aluminum alloy parts.
