In non-standard precision OEM custom manufacturing, CNC Turning and CNC Milling are the two core mainstream processes; the vast majority of mechanical parts, automation components, and precision hardware parts are produced using these two methods. Many procurement professionals and engineers often confuse the boundaries of applicability between the two processes, leading to inflated manufacturing quotes, extended lead times, and wasteful redundancy in manufacturing processes. Drawing on years of experience in non-standard customization and leveraging its professional Precision CNC Turning Services and High-Precision CNC Milling capabilities, Shengpeng Precision clearly distinguishes the machining principles, structural suitability, batch production advantages, and cost logic of these two processes, helping companies make precise process selections and optimize production costs. At the same time, by combining these with our proven capabilities in the finishing of aluminum die-cast blanks and rapid prototyping via 3D printing services, we achieve optimized multi-process integration to further enhance cost-effectiveness.
一、Key Differences in the Core Machining Principles of CNC Turning and CNC Milling

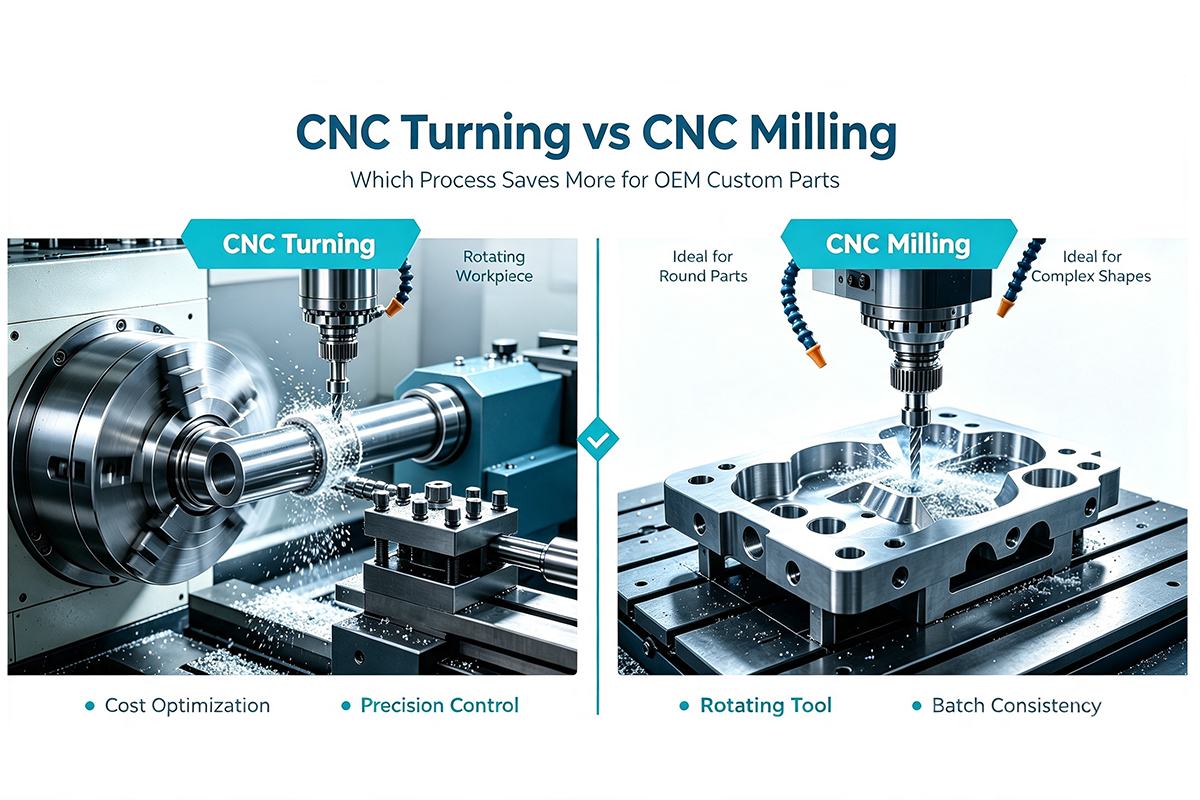

CNC turning operates on the principle of “rotating workpiece, stationary tool feed,” where the machine’s spindle drives the material to rotate at high speed while the tool moves in a linear or simple trajectory. This method is suitable for regular rotational structures, featuring simple machining paths, extremely high efficiency, and stable repeatability. In contrast, CNC milling operates on the principle of “high-speed rotating tool with stationary workpiece,” enabling multi-axis (XYZ) coordinated tool movement. It can machine complex, irregular structures such as flat surfaces, cavities, inclined surfaces, grooves, and irregular curved surfaces. While it offers strong forming capabilities, it requires longer processing times per operation and results in higher equipment wear.
二、Applications of CNC Turning
CNC turning is primarily used for various axisymmetric and circular rotary CNC-turned parts, offering the best cost-performance ratio for precision circular components. Typical products include: various precision shafts, sleeves, bushings, flanges, threaded studs, circular sealing components, stepped shafts, tubular fittings, and circular fasteners. As long as a part’s overall structure is predominantly circular and radially symmetric—regardless of size—the turning process offers the advantages of rapid machining, stable tolerances, and high surface finish. It is particularly well-suited for the mass production of standardized rotary parts, enabling unattended automated machining and significantly reducing the production cost per unit.
三、Applications for CNC Milling
CNC milling specializes in asymmetrical, irregularly shaped, and polyhedral parts, making it the preferred process for complex, precision components. It is primarily suitable for: equipment panels, mounting brackets, housing enclosures, perforated plates, irregularly shaped bases, heat sink modules, parts with angled holes, multi-angle structural components, mold cavities, and other CNC-milled parts. For complex structures featuring multiple surfaces, irregular curved surfaces, deep and shallow cavities, and irregular slots, milling allows for the machining of multiple features in a single setup. It eliminates the need for mold making, offers flexible design changes, and is exceptionally well-suited for new product development and small-batch, multi-variety customization scenarios.

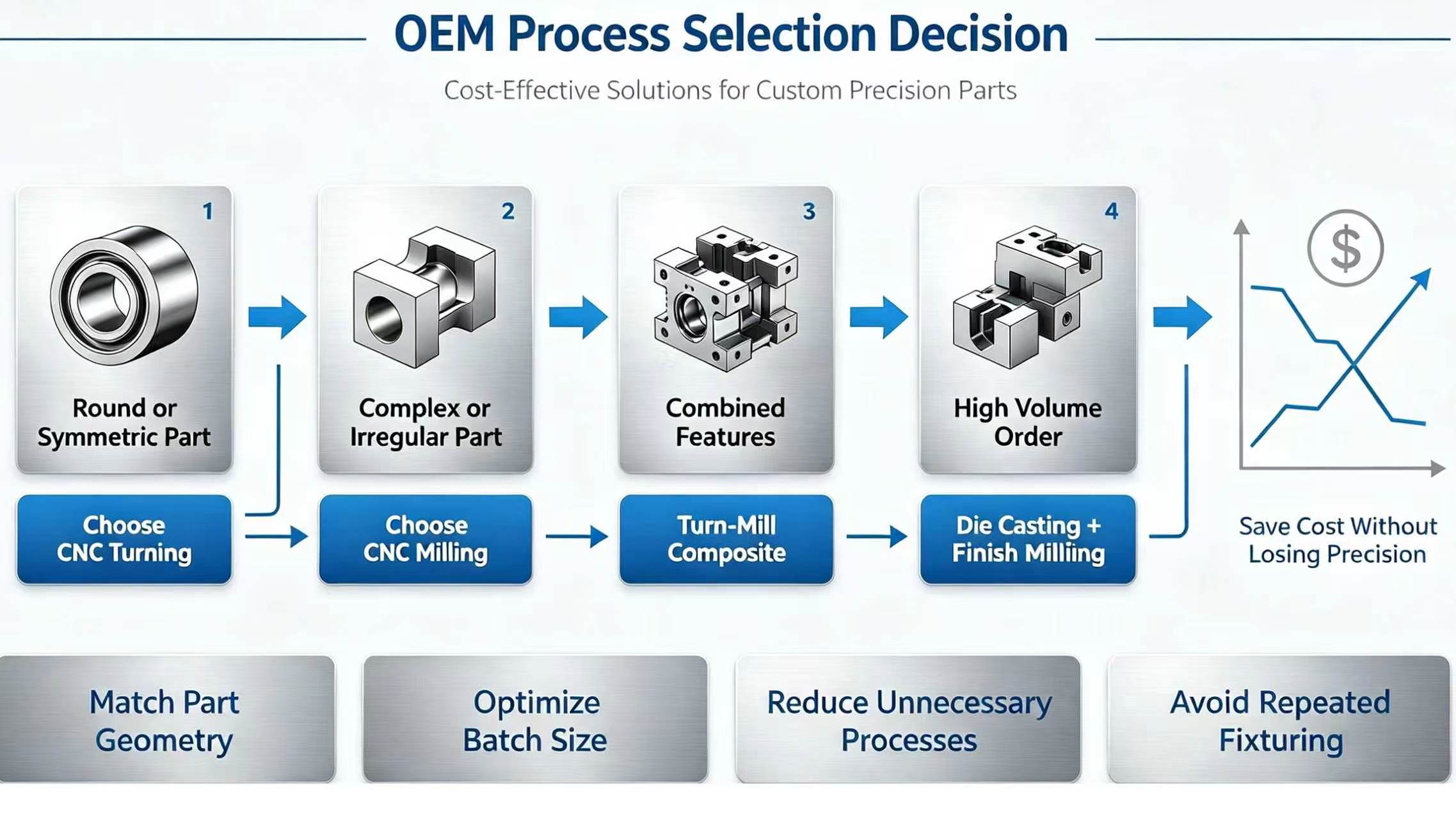

四、Core Logic for Cost-Effective Process Selection in OEM Customization
1. For purely circular and axisymmetric parts, prioritize CNC turning: shorter machining time, lower equipment wear, and higher yield rates; for high-volume production, this can directly reduce machining costs by 20%–40%;
2. For irregularly shaped, block-like, cavity-containing, multi-hole, or polyhedral structures, consistently choose CNC milling: no mold costs, strong structural adaptability, and avoidance of structural precision loss caused by forced process substitutions;
3. For composite parts (circular body + flat surfaces/slots/flat sections): For small batches, use a “turn-then-mill” composite process; for large-volume, long-term repeat orders, prioritize single-pass machining using turn-mill composite equipment to reduce errors from re-clamping and lower labor costs;
4. Oversized and heavy structural components: Prioritize die-casting or casting of rough blanks followed by precision milling to reduce waste of solid raw materials, further controlling costs and improving efficiency.
五、Common Misconceptions in Process Selection and Key Points to Avoid Pitfalls
Many customers, seeking convenience, uniformly opt for milling to process all parts, resulting in doubled processing costs for small, circular parts; some customers also insist on using turning for irregularly shaped structures, leading to failed forming, repeated rework, and dimensional deviations. Proper process selection does not mean “standardizing a single process,” but rather dynamically matching processes based on part structure, order quantity, and precision requirements—only then can precision targets be met, costs minimized, and lead times shortened.
六、One-Stop OEM Custom Process Optimization Service
Shengpeng Precision possesses a complete end-to-end production capacity covering turning, milling, die-casting, 3D printing, and surface treatment. Upon receiving CAD drawings, our technical team provides free DFM (Design for Manufacturing) process optimization, matching the optimal machining solution based on part geometry and order volume to eliminate process waste and precision risks. We support small-batch prototyping as well as medium- and large-scale mass production, ensuring consistent precision, controllable pricing, and on-time delivery throughout the entire process.
