Basic Info
Model No.: SP-099
Product Description

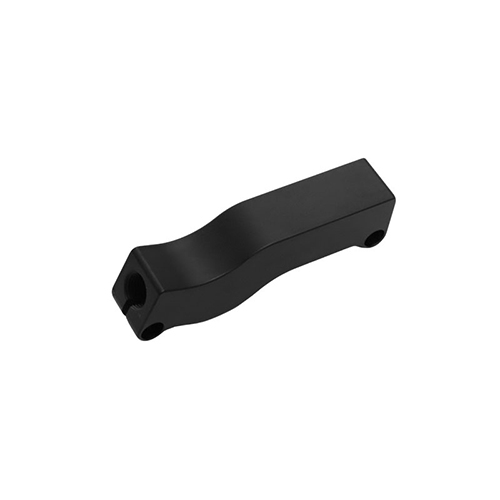

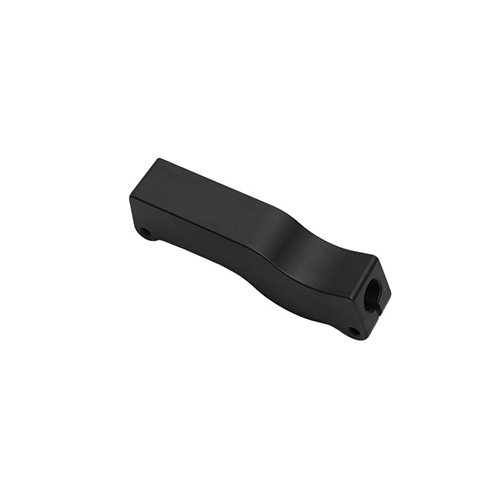

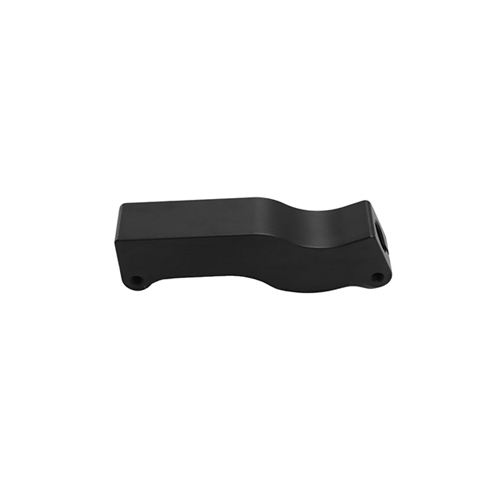

The drone lock buckle CNC milling part is a slender, integrated strip structure featuring an S-shaped curved contour. One end consists of a thickened rectangular block with two vertical through holes and a longitudinal slot on one side; the other end features a symmetrical double-fork design with parallel inner surfaces and circular openings at each tip. The space between the two forks forms an elastic locking mechanism. The central body includes an elongated through-hollow groove for enhanced structural functionality.
Select high-quality aluminum alloy 7075 rods or plates. Remove any material containing impurities, cracks, or folding defects. Cut the raw stock to the required dimensions using CNC technology, ensuring the vacuum fixture compatibility, hardness consistency, and proper foundation for subsequent post-processing.
Utilize a high-precision CNC machining center to perform multi-face clamping in a single setup. Mill the gripper profile, form the locking groove, drill installation holes, and precisely machine the positioning surfaces. Leveraging our extensive expertise in CNC milling services, we strictly control critical parameters including opening symmetry, drilling coaxiality, and contour tolerances—ensuring superior locking accuracy and mechanical reliability.
Apply both manual and mechanical deburring and edge rounding treatments to all milled edges, slots, and hole positions. This removes residual sharp edges, prevents damage to surrounding components (e.g., arms), maintains fitting precision, enhances surface smoothness, and improves overall clamping stability.
Pre-treat the lock buckle by degreasing, oil removal, and polishing. Follow with hard anodizing to produce a uniform, dense, high-hardness oxide layer. This significantly enhances wear resistance and corrosion protection. Custom colors can be applied according to client specifications.
Conduct ultrasonic cleaning to eliminate oils and contaminants. Perform comprehensive inspection using calipers, plug gauges, and advanced shape and position tolerance testers. Verify dimensional accuracy, opening elasticity, and surface quality against stringent CNC milling standards. The final product is guaranteed to meet the exacting precision requirements of unmanned aerial vehicles (UAVs). After passing inspection, the part is carefully packaged and preserved for shipment.
Note: All processes comply with international quality standards and are optimized for performance, durability, and precision in aerospace and drone applications.
Product Categories : CNC Milling
