High-Quality Automotive Bearing Sleeves Components for Reliable Performance

Automotive Bearing Sleeves

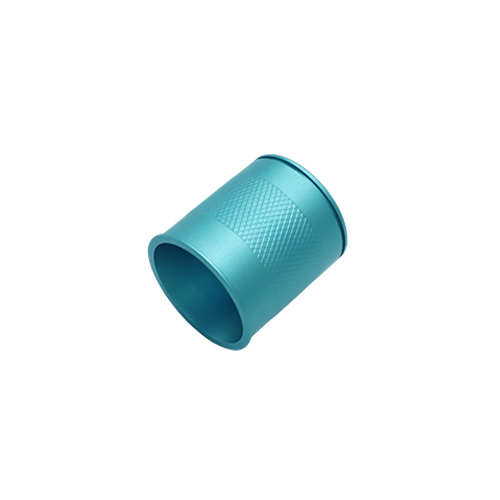

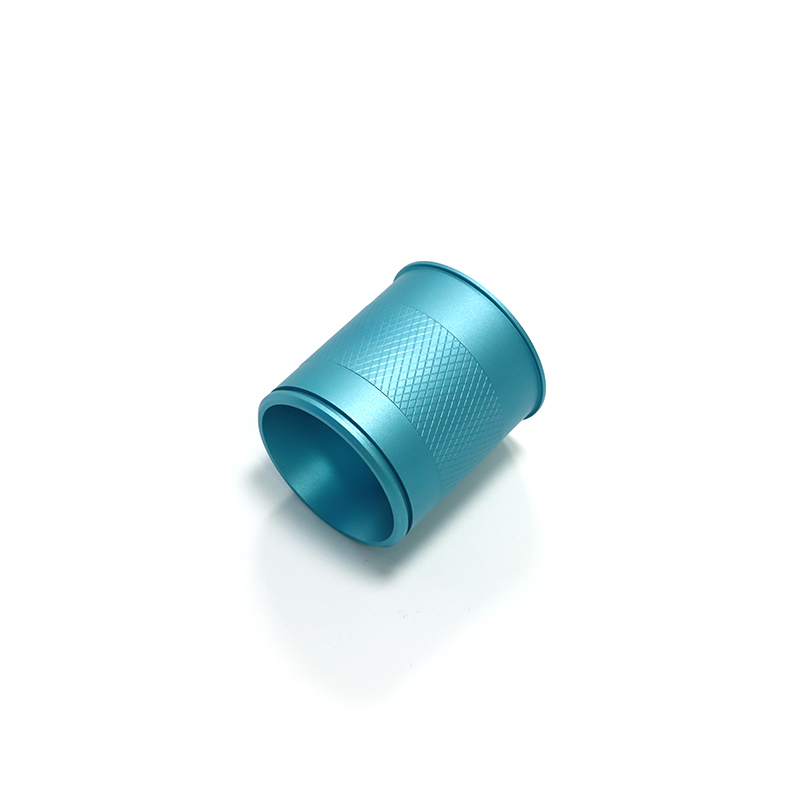

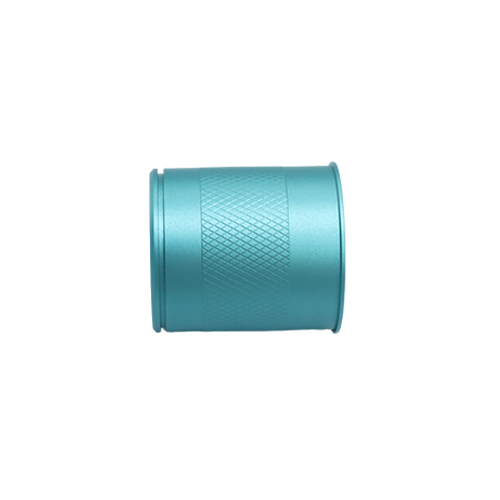

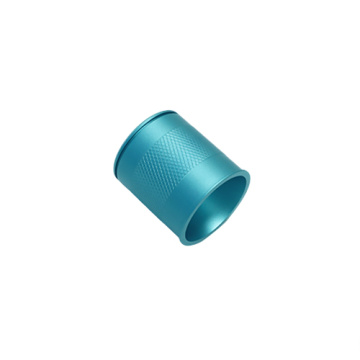

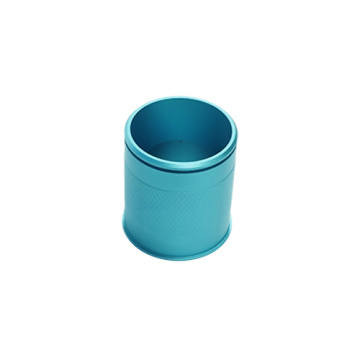

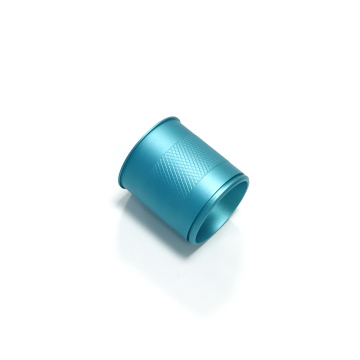

Engineered from high-grade 6061-T6 aluminum alloy, these precision-machined bearing sleeves feature a compact cylindrical design with exceptional inner bore smoothness. This ensures precise, consistent adjustment between the outer ring and bearing housing, delivering reliable performance and smooth operation. A diamond-patterned rolling zone is meticulously embossed on the outer cylindrical surface, significantly enhancing friction and anti-slip properties during manual assembly—making installation and disassembly effortless by hand or as a manual adjustment ring. Both ends are smoothly finished with chamfered edges to prevent stress concentration and avoid surface scratches during assembly.

Manufacturing Process Overview

1. Initial Machining: The process begins with the selection of standard 6061 aluminum stock. Using advanced CNC Turning technology, excess material is rapidly removed to form the basic cylindrical shape, initial inner profile, and end face step. A controlled machining allowance is maintained for subsequent precision operations.
2. Precision Finishing: Employing high-accuracy CNC Turning Services, semi-finish and finish machining are performed in stages to tightly control tolerances. Coaxiality, cylindricity, and dimensional accuracy of both internal bores and external diameters are strictly maintained at micrometer-level precision. A specialized rolling tool is then used on the lathe to create a uniform, anti-slip cross-hatch texture. Final deburring and edge chamfering eliminate sharp edges, reduce stress points, and enhance both safety and aesthetic quality.
3. Anodizing Treatment: After machining, parts undergo a multi-stage anodizing process: degreasing, alkaline etching, neutralization, oxidation, and pore sealing. This results in a dense, sky-blue oxide layer on the surface—providing outstanding resistance to wear, corrosion, and environmental degradation.

Dongguan Shengpeng Precision Technology Co., Ltd. is a professional manufacturer specializing in precision CNC machining solutions. We offer comprehensive Custom Precision CNC Turning Services, fully adaptable to your unique requirements—whether it's dimension specifications, material selection, or surface treatment. From automotive bearing sleeves to other high-precision components, our expertise enables us to meet diverse application needs and support various production and operational demands with reliability and excellence.
