Gravity Cast Engine Housing Components

Gravity Casting Engine Casing by Dongguan Shengpeng Precision Technology Co., Ltd.

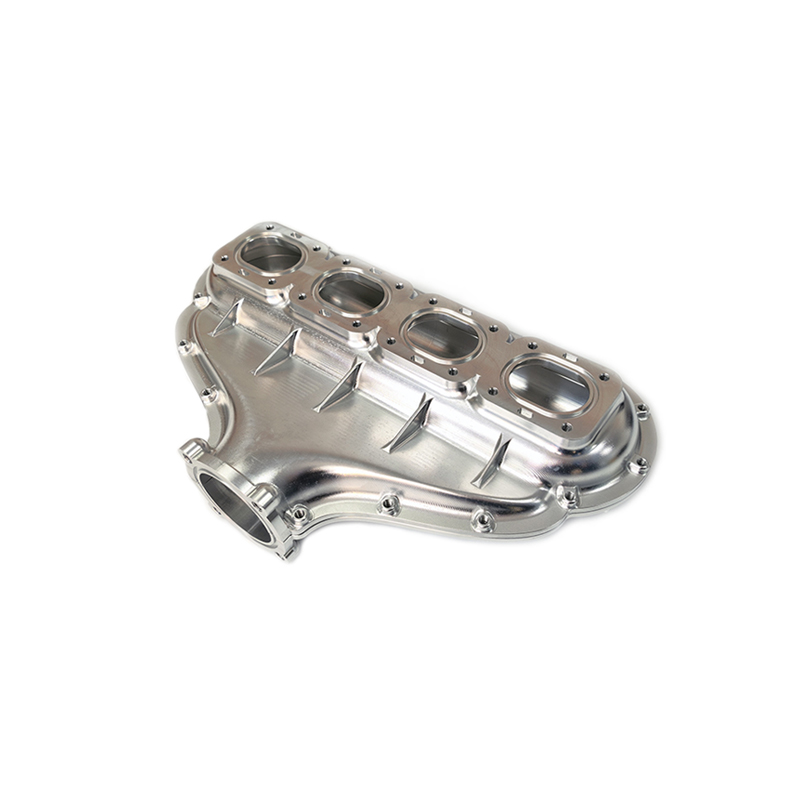

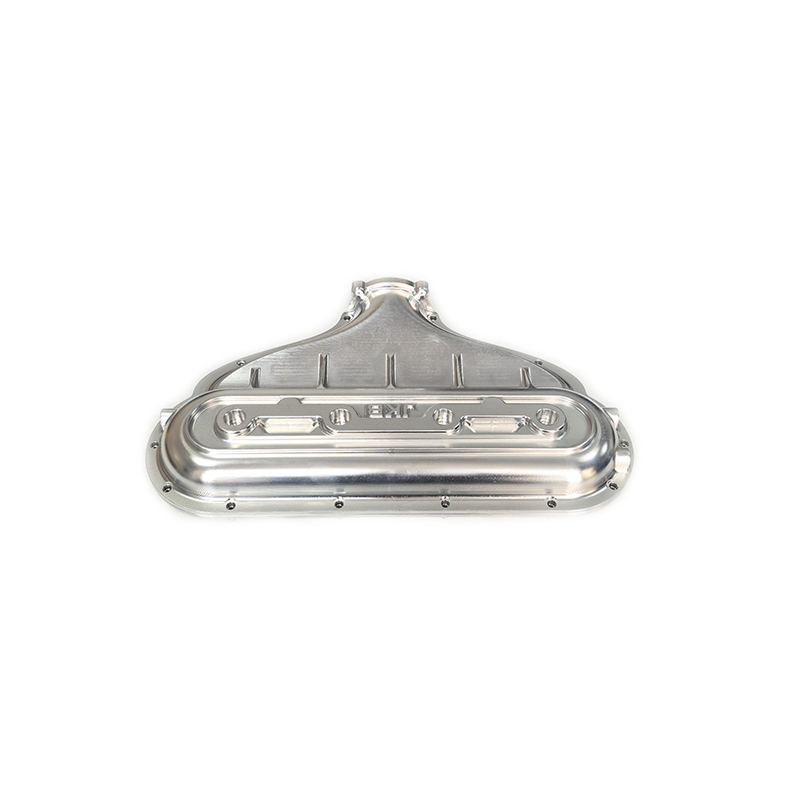

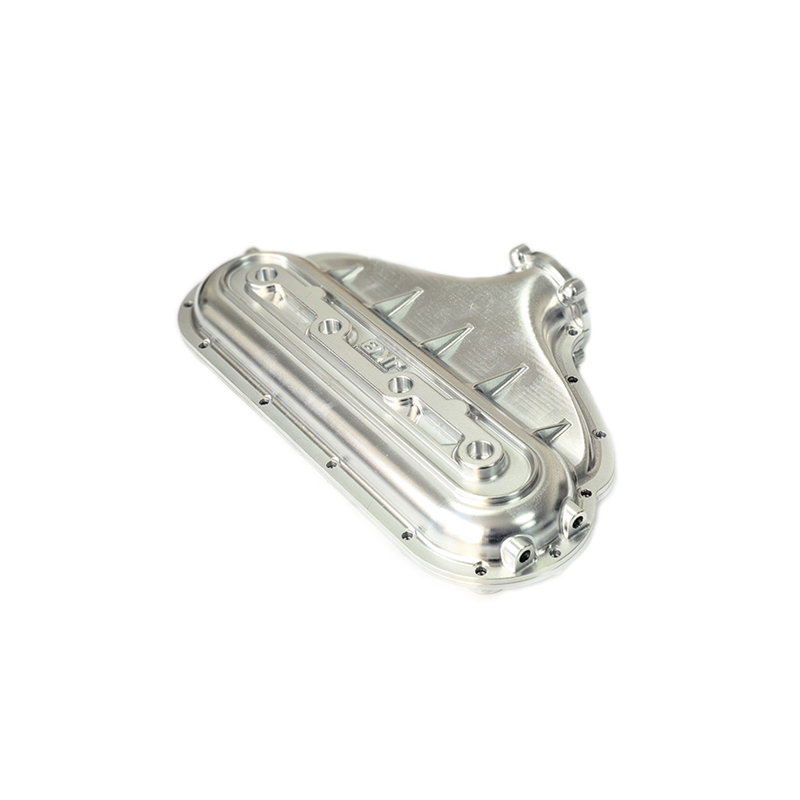

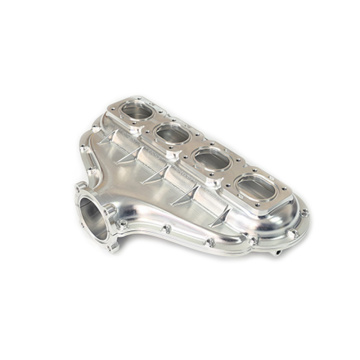

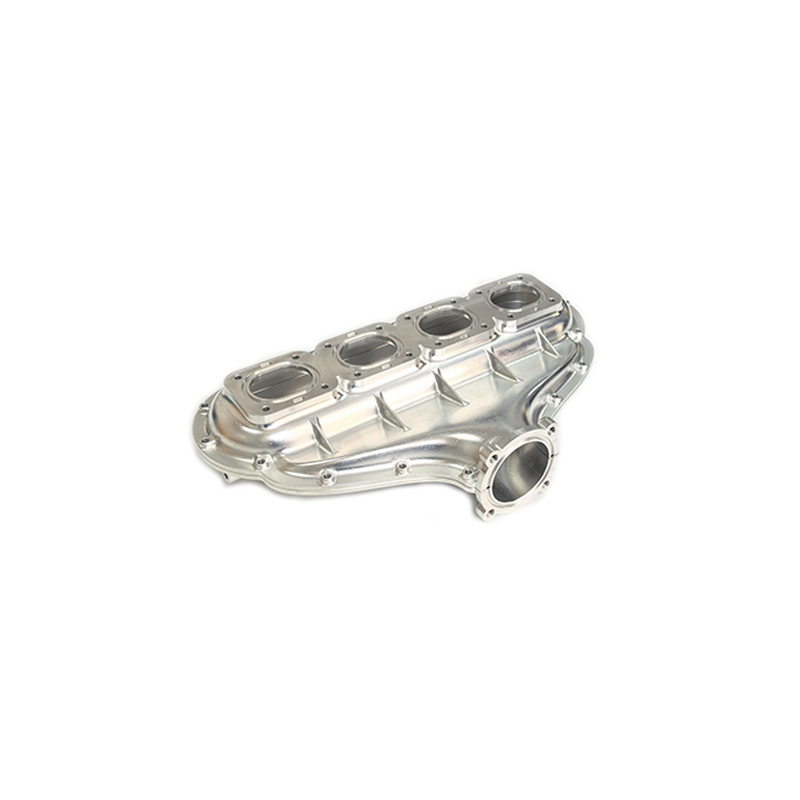

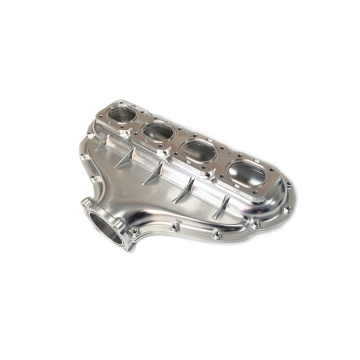

This engine casing is a gravity-cast component manufactured by Dongguan Shengpeng Precision Technology Co., Ltd. Crafted from high-quality aluminum alloy 6061-T5, it exhibits a sleek, silver-white metallic luster. The main body features a flat roof design with centrally located protruding reinforcing ribs that enhance structural rigidity and improve heat dissipation. On one side of the housing, multiple mounting bolt holes ensure secure and stable mechanical connections. One end extends into an arc-shaped profile, specifically designed to accommodate complex engine component layouts.

Manufacturing Process

1. Gravity Casting (Step 1): We begin with Customized Aluminum Gravity Casting using molten aluminum alloy 6061-T6. The metal is poured into a custom sand mold, where it fills the cavity naturally under gravity. This process simultaneously forms the intricate shell contour, reinforcing flanges, and mounting seat structure—ensuring dimensional accuracy and close alignment with engineering drawings, while minimizing subsequent machining allowances.
2. Precision CNC Machining (Step 2): After initial processing and hardness enhancement, the blank is transferred to a high-precision CNC machining center. Critical features such as the mounting surface, sealing holes, threaded bores, and interface surfaces are meticulously machined. Geometric tolerances—including flatness, coaxiality, and sealing surface accuracy—are tightly controlled within ±0.01 mm, guaranteeing superior sealing performance and precise motor assembly compatibility.
3. Post-Processing & Cleaning (Step 3): Following treatment, the component undergoes ultrasonic cleaning combined with manual deburring to precisely remove casting residues and sharp edges. This ensures no foreign particles remain inside the casing, preventing contamination and operational interference within the engine system.

Dongguan Shengpeng Precision Technology Co., Ltd. offers comprehensive one-stop solutions—from gravity casting to precision finishing. Full customization is supported: adjust dimensions, switch materials (such as alternative aluminum alloys or cast steel), or add surface treatments including anodizing, sandblasting, and powder coating—all tailored to your specific requirements.
