Gravity Casting Components for Engine Housing

Engine Housing Manufacturing Process

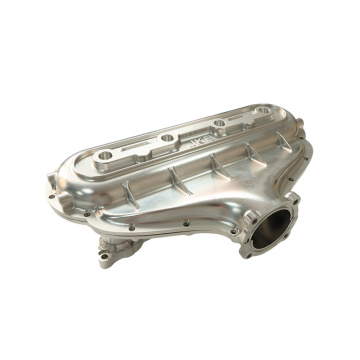

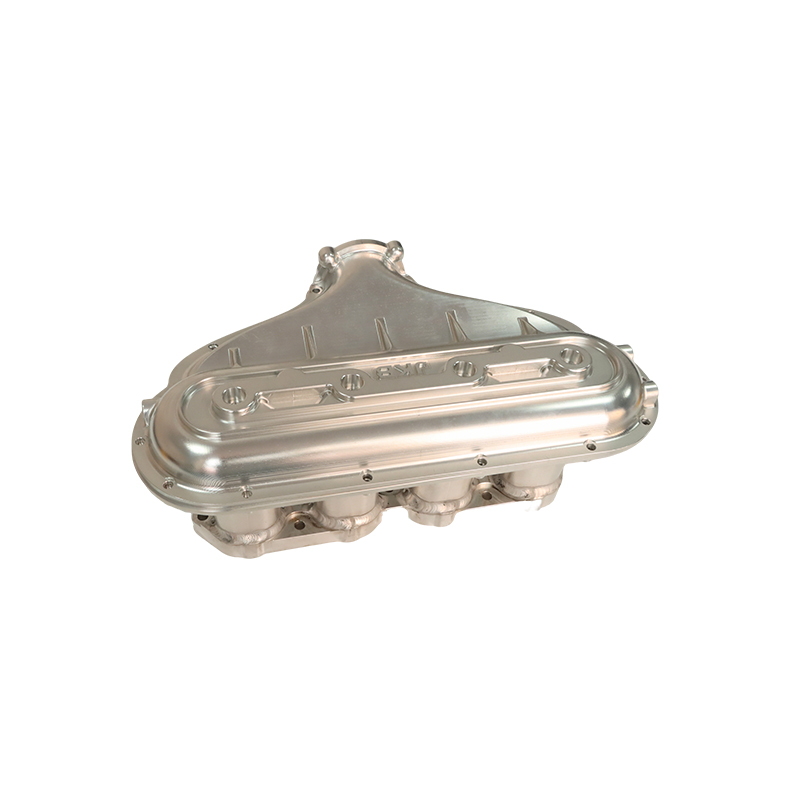

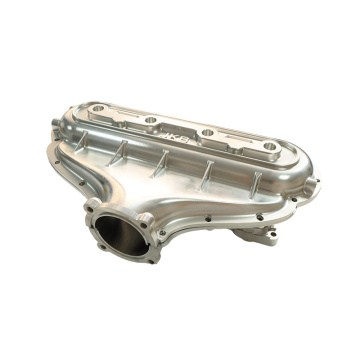

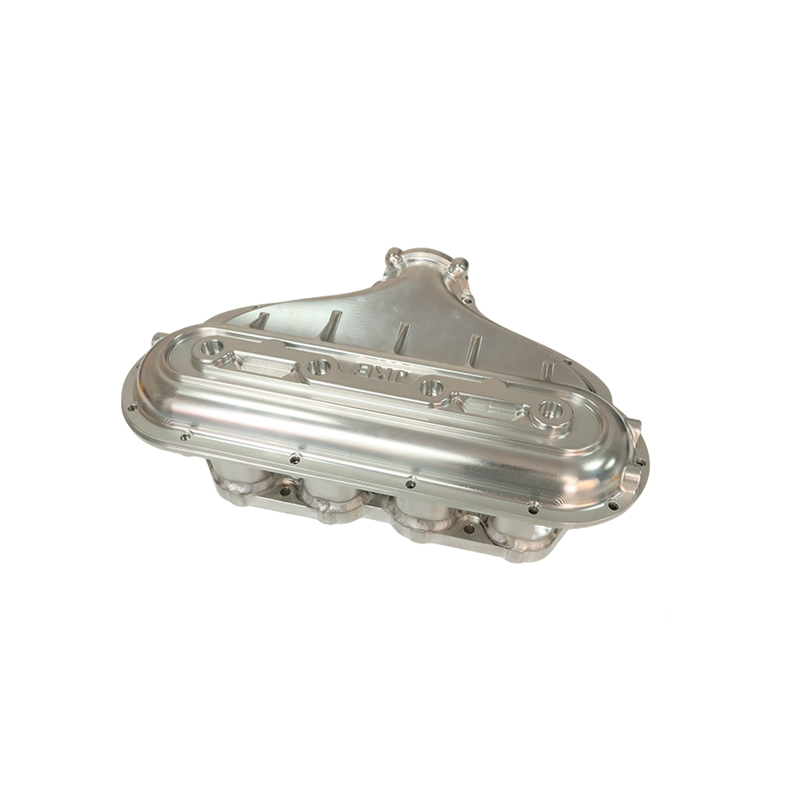

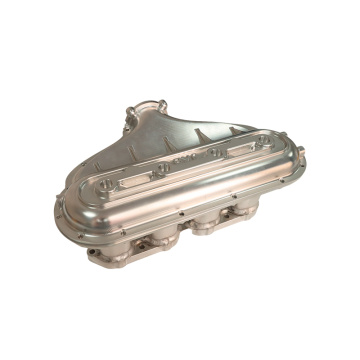

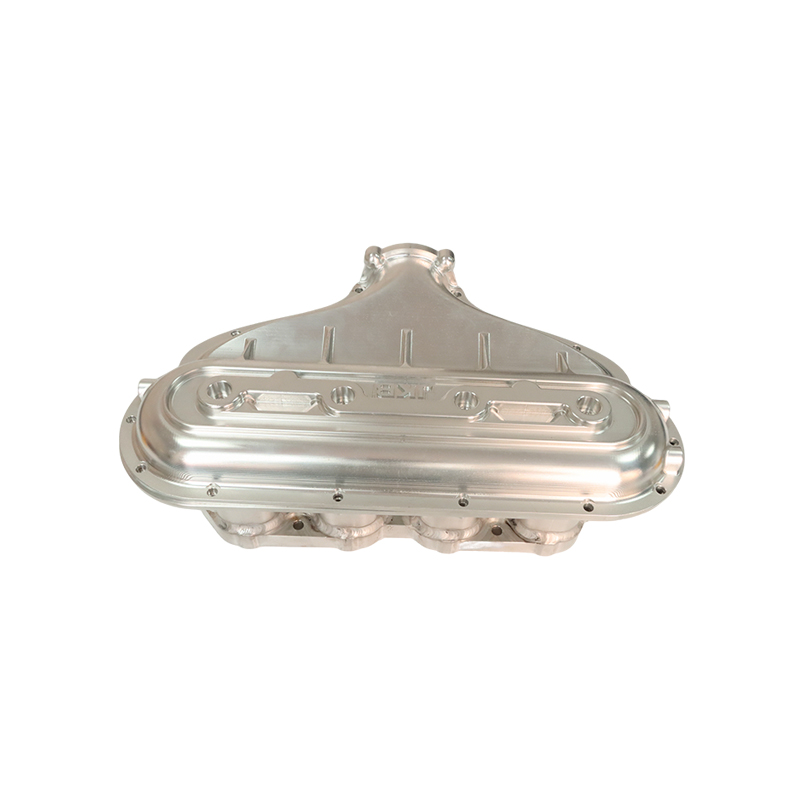

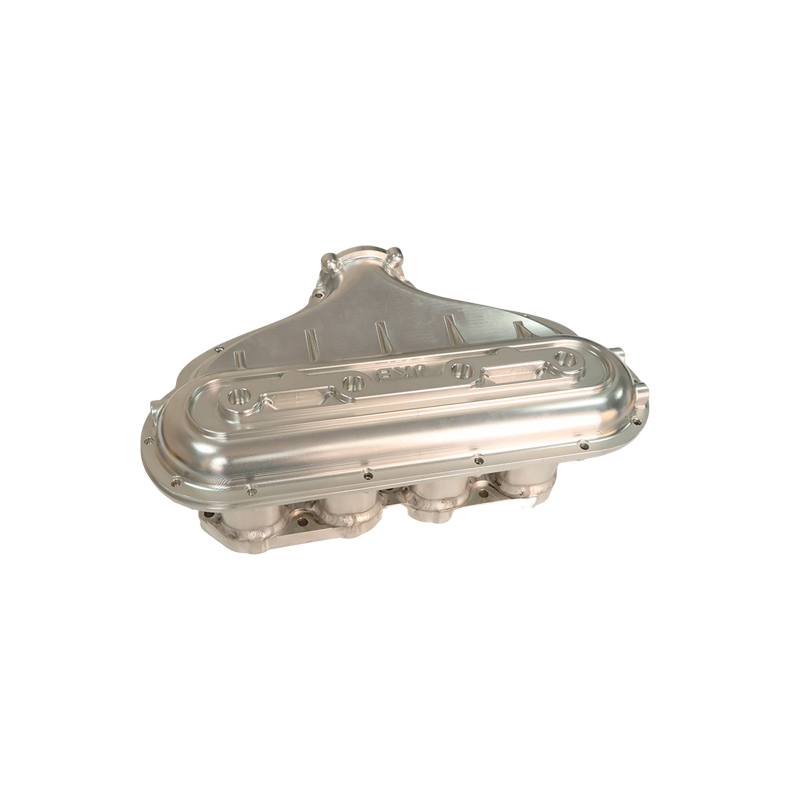

The engine housing is crafted from 6061-T5 aluminum alloy via gravity casting, followed by precision machining and surface treatment to achieve a fully completed component. The upper section features a wide intake manifold cover plate with multiple longitudinal reinforcement ribs and groove-type guide channels for optimized airflow. The central area employs CNC or laser engraving to produce crisp, precise markings. Multiple cylindrical protrusions are arranged with high coaxiality and regular thread hole patterns, ensuring reliable sealing and stable assembly. The perimeter incorporates multiple sets of evenly spaced mounting holes with embossed construction, guaranteeing a smooth, flush surface after bolt tightening.

1. Step 1: Gravity Casting Formation

   Complete the forming process through professional gravity casting services. Preheated AL6061-T5 aluminum alloy is injected into a specialized mold, filling the cavity under natural gravity. This forms the complex internal cavities, airways, and mounting flanges of the housing. Strict control over outlet temperature and cooling rate minimizes defects such as porosity and shrinkage, ensuring high density and structural integrity.

2. Step 2: Precision Machining

   After casting, the blank undergoes deburring and sand cleaning. Utilizing a customized precision machining scheme for non-standard gravity cast parts, high-precision CNC equipment performs drilling, boring, and finishing operations. This includes removing casting allowances, completing airway finishing, installing hole boring, and mirror-polishing sealing surfaces. All dimensions are maintained within micrometer-level tolerances, ensuring precise alignment and reliable positioning between the housing and engine components.

3. Step 3: Natural Hard Anodizing Surface Treatment

   Post-processing, the part undergoes natural hard anodizing. Through electrochemical reactions, a dense layer of aluminum oxide is formed on the surface, enhancing wear resistance, corrosion protection, and electrical insulation. The result is a durable, aesthetically pleasing finish that preserves the original metallic luster of the 6061-T5 alloy.

As a professional manufacturer of precision components, Dongguan Shengpeng Precision Technology Co., Ltd. boasts a fully integrated production system combining gravity casting and advanced precision machining. We offer comprehensive customization services for gravity casting parts, tailored to meet diverse customer requirements. Our capabilities include adjusting dimensional specifications, optimizing airway design based on engine model and power parameters, selecting alternative materials, and customizing surface treatments—ensuring accurate alignment with your product design objectives.
