Dongguan Shengpeng Precision Technology Co., Ltd.
Home > Products > CNC Milling > CNC Milling Part for Endoscope Base Precision Manufacturing
CNC Milling Part for Endoscope Base Precision Manufacturing
CNC Milling Part for Endoscope Base Precision Manufacturing
CNC Milling Part for Endoscope Base Precision Manufacturing
CNC Milling Part for Endoscope Base Precision Manufacturing
CNC Milling Part for Endoscope Base Precision Manufacturing
CNC Milling Part for Endoscope Base Precision Manufacturing
CNC Milling Part for Endoscope Base Precision Manufacturing
  • CNC Milling Part for Endoscope Base Precision Manufacturing
  • CNC Milling Part for Endoscope Base Precision Manufacturing
  • CNC Milling Part for Endoscope Base Precision Manufacturing
  • CNC Milling Part for Endoscope Base Precision Manufacturing
  • CNC Milling Part for Endoscope Base Precision Manufacturing
  • CNC Milling Part for Endoscope Base Precision Manufacturing
  • CNC Milling Part for Endoscope Base Precision Manufacturing

CNC Milling Part for Endoscope Base Precision Manufacturing

    Min. Order: 1 Bag/Bags
Contact Now

Basic Info

Model No.: SP-089

Brand: SP-MFG

Product Description

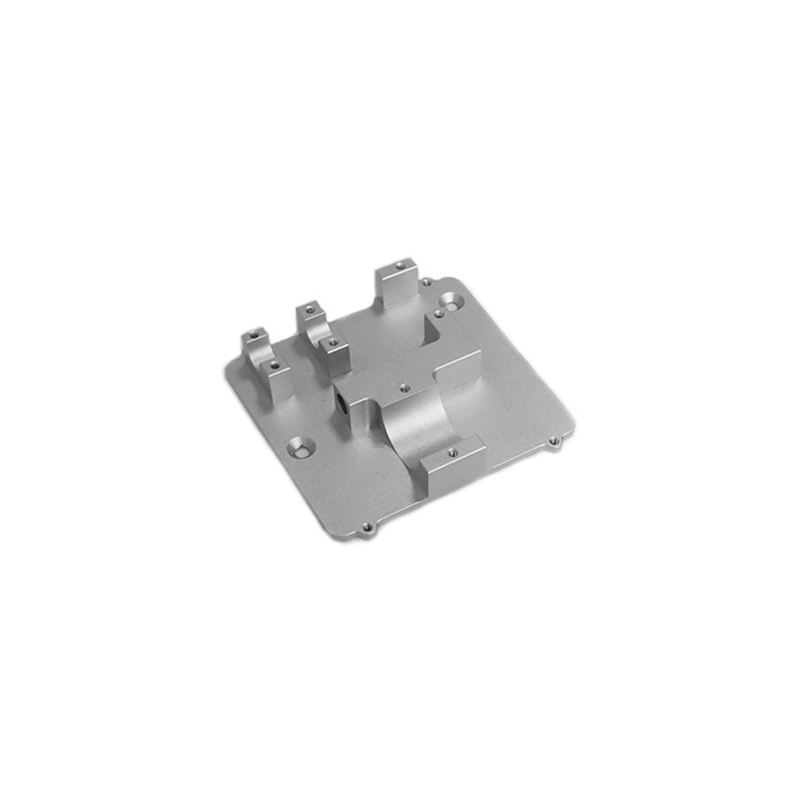

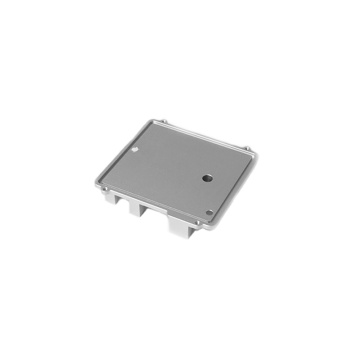

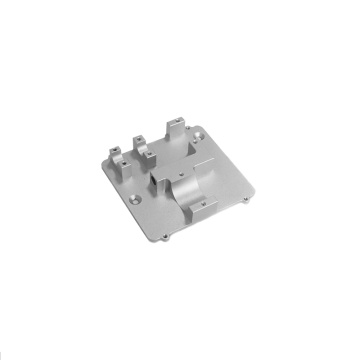

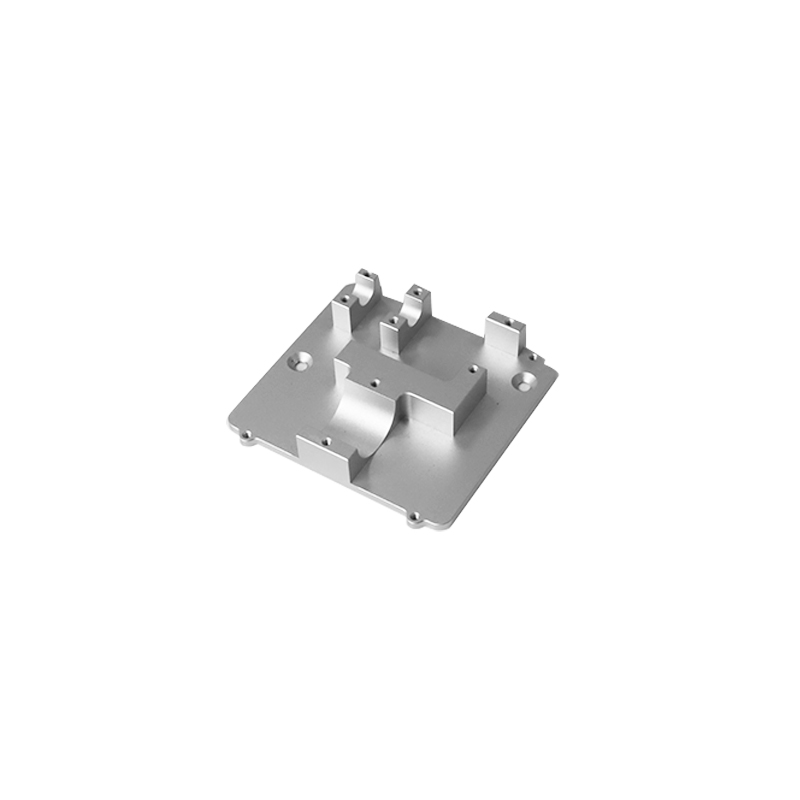

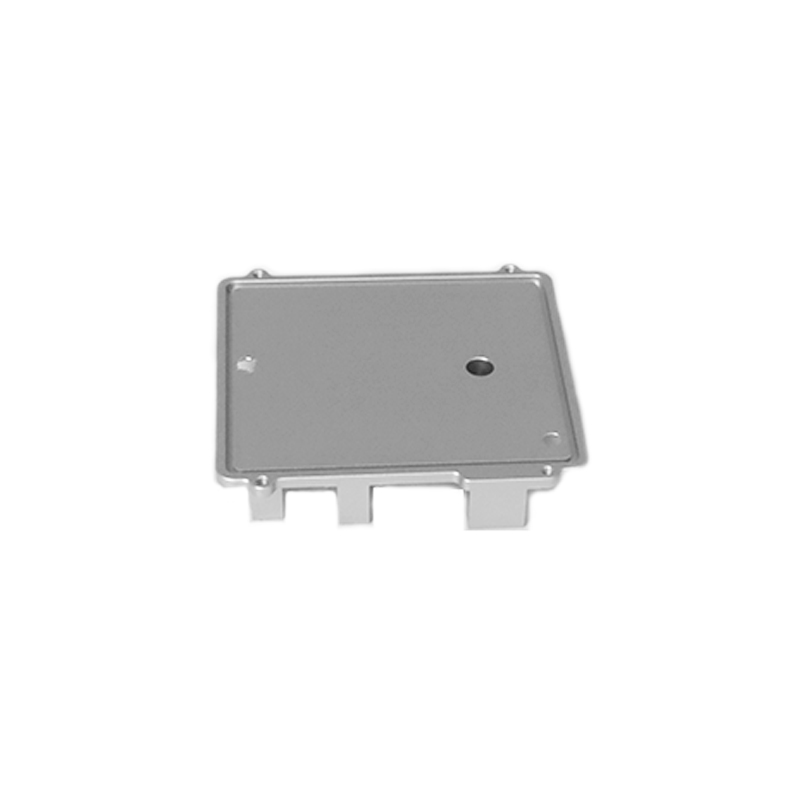

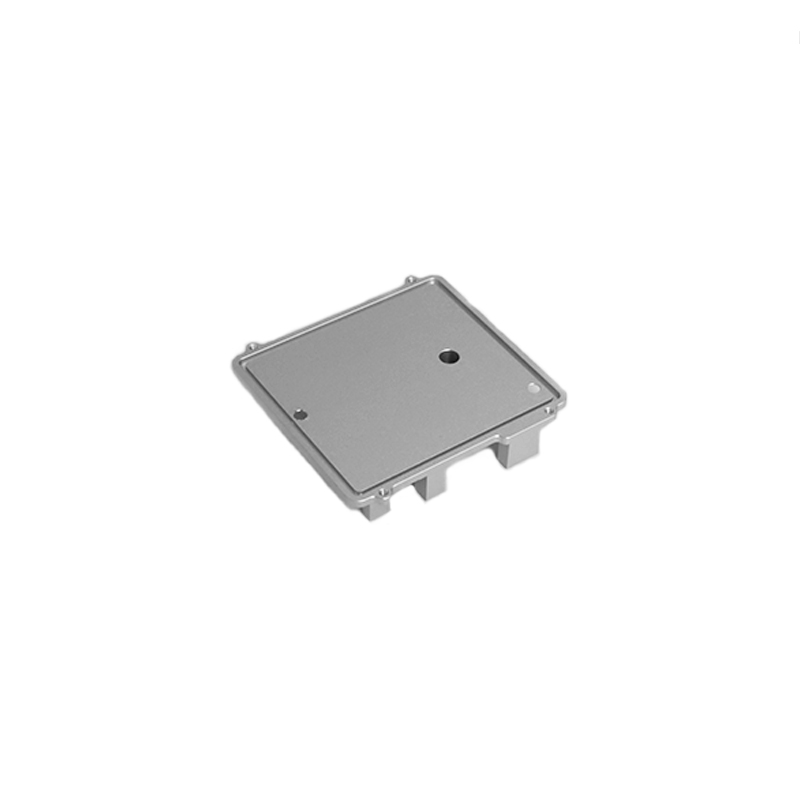

Endoscope Base CNC Milling Part

High-Precision CNC Machined Endoscope Base

The endoscope base is crafted from high-strength aluminum alloy AL6061-T6 using ultra-precise CNC milling, featuring a uniform rectangular plate structure. A central dovetail joint combined with a U-split design ensures accurate positioning and secure closure of optical components. Flush feet and symmetrical threaded bores enable flexible and versatile installation options.

The surface undergoes 120# sandblasting followed by glossy silver anodizing, delivering a durable, matte metallic finish with excellent aesthetic appeal and functional performance. Internal reinforcing ribs and weight-reduction cavities are strategically integrated to maximize structural endurance while minimizing mass—ideal for precision medical applications.

Specially engineered for high-precision medical devices, this component meets stringent industry standards for repeatable positioning accuracy, dimensional stability, and compatibility with sterile environments.

CNC Parts Machining Base CNC Milling Part

Manufacturing Process Overview

  1. Material Preparation: Solid aluminum alloy 6061-T6 billets are precisely cut using a CNC sawing machine. Dimensional tolerance is tightly controlled within ±0.1 mm to ensure consistency with design specifications and provide a reliable foundation for subsequent machining steps.
  2. CNC Milling: The billet is securely clamped onto the CNC machining center worktable. The process begins with rough milling using a large-diameter flat-end mill to quickly remove excess material and establish the basic contour and convex platform profile. Next, a medium-diameter tool performs semi-precision milling on side walls, mounting surfaces, positioning holes, and groove locations, leaving a consistent margin for final finishing. Finally, all mating surfaces, hole positions, and chamfers are precision milled with small-diameter tools to achieve exceptional control over flatness, hole coaxiality, and positional tolerances—held within ±0.005 mm.
  3. Surface Treatment & Finishing: After milling, sharp edges are removed via ultrasonic cleaning and manual deburring. The surface is then treated with 120# sandblasting to create a uniform matte texture, enhancing oxide film adhesion. Subsequent glossy silver anodizing forms a dense, protective aluminum oxide layer that provides superior corrosion resistance, wear resistance, and biocompatibility—while preserving the sleek metallic appearance required in medical-grade equipment. Throughout the entire process, optimized cutting parameters and high-pressure cooling systems are applied based on the material properties of AL6061-T6 to prevent thermal deformation and guarantee dimensional and visual consistency.

Dongguan Shengpeng Precision Technology Co., Ltd. — a trusted professional manufacturer of CNC machining services — offers comprehensive, full-customization support. Whether you require dimension adjustments, structural redesigns, material substitutions, or modifications to surface treatments, we deliver tailored solutions to meet your exact technical and functional needs.
