Basic Info
Model No.: SPCX-067
Brand: SP-MFG
Origin: China
Place Of Origin: China
Color: Customized Color
Size: Customized Size
Drawing Format: pdf,igs,dwg,step,stp
Surface Treatment: Customer's Request
OEM/ODM: Accecpted
Certification: ISO 9001
Minimum Tolerance: ±0.005
Logo Engrave: Laser Engrave/CNC Engrave
Additional Info
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Payment Type: L/C,T/T,D/P,Paypal,D/A
Incoterm: FOB,EXW
Product Description

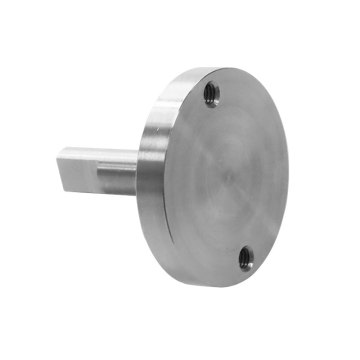

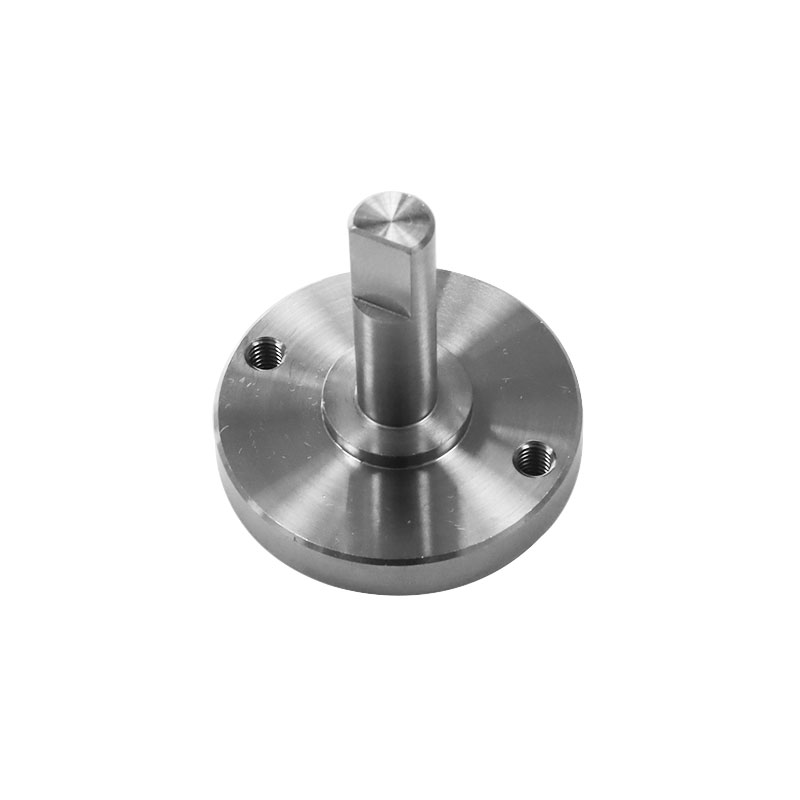

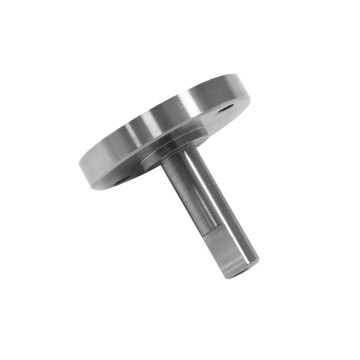

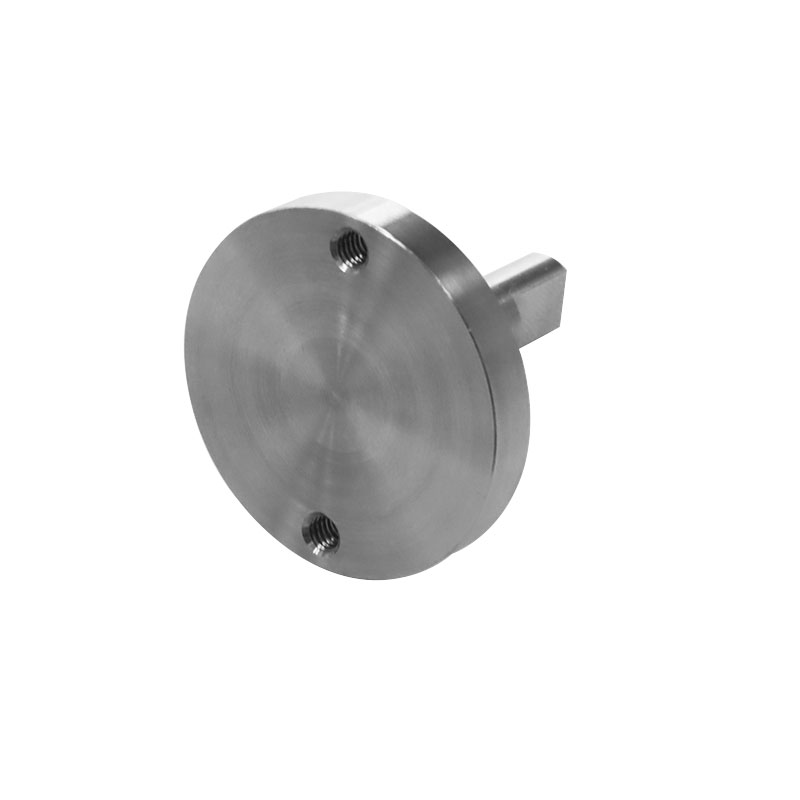

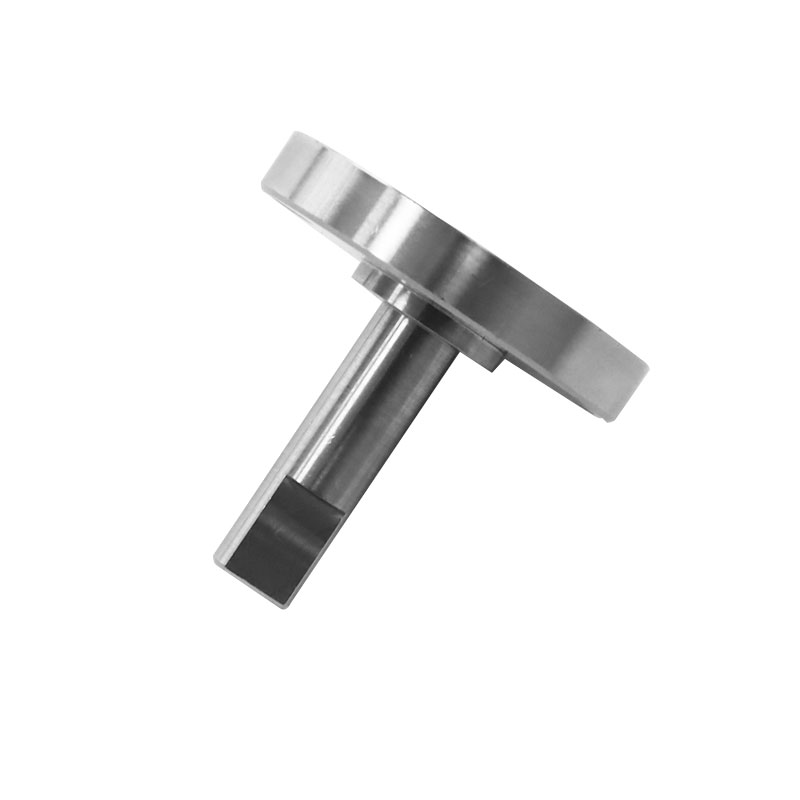

These high-precision CNC turned components are crafted from 42CrMo high-carbon steel and processed into integrated flange blades with exceptional accuracy. The design features a circular flange with dual-pass orifices and an enlarged flat wave structure. The flange ensures secure bolt fixation for precise positioning, while the flat wave effectively prevents rotation and reliably transmits torque through non-circular cross-sections.
After precise clamping and positioning of the raw bar stock, the rough turning process begins on our CNC lathe. High-speed machining with efficient feed rates quickly removes excess material, pre-forming the flange disk contour and the progressive waveboard structure—laying a solid foundation for subsequent precision operations.
We then switch to high-precision CNC turning mode, utilizing advanced tools and optimized cutting parameters. The flange’s surface plane is controlled within ±0.02 mm tolerance to ensure full compliance with smooth surface requirements. The shaft section strictly maintains cylindricity and coaxiality, guaranteeing uniformity and dynamic precision during rotation.
Once the main turning is complete, we perform targeted drilling to create accurate positioning and mounting holes on the flange. Hole positioning error is maintained within ±0.03 mm, ensuring a stable and reliable connection when mounting equipment.
Following machining, the part undergoes surface finishing. Initial fine polishing removes residual tool marks, followed by mirror polishing to achieve a surface finish of Ra ≤ 0.4 μm—delivering a sleek, high-quality appearance with superior performance characteristics.
As a professional manufacturer of CNC services, we provide comprehensive custom solutions—whether it’s dimensional adjustment, material substitution, or modifications in surface treatment processes. Our CNC Turning Services are tailored to meet your unique needs across diverse industrial applications, delivering a seamless solution from design to delivery.
Product Categories : CNC Turning
