Durable L-Shaped Metal Brackets for Structural Support

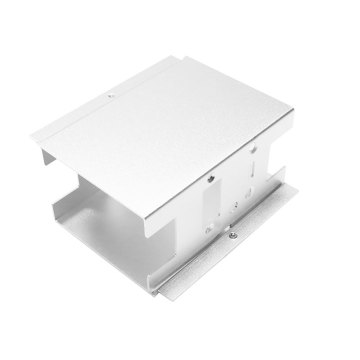

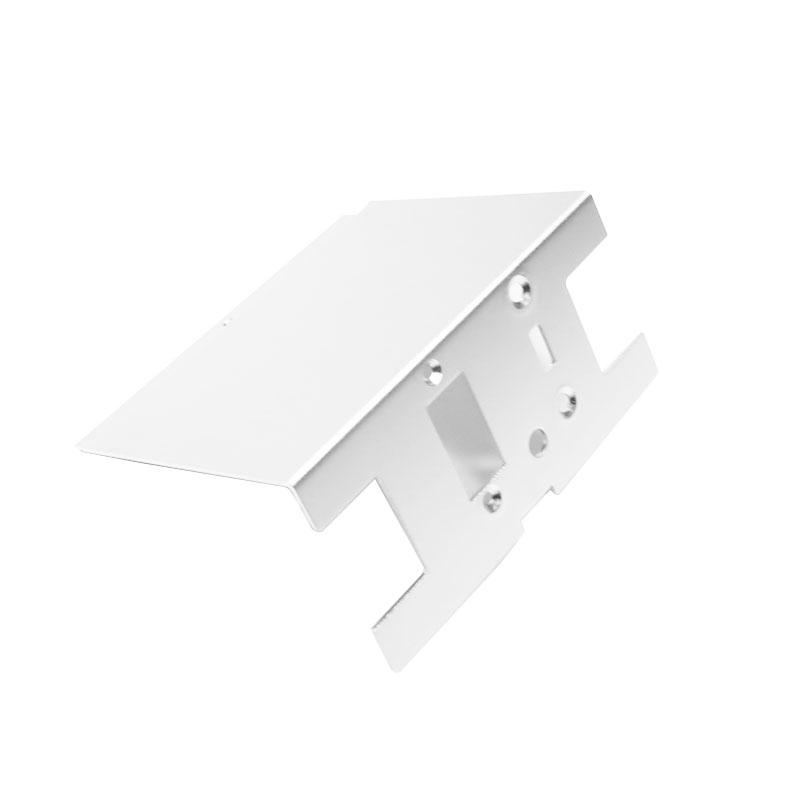

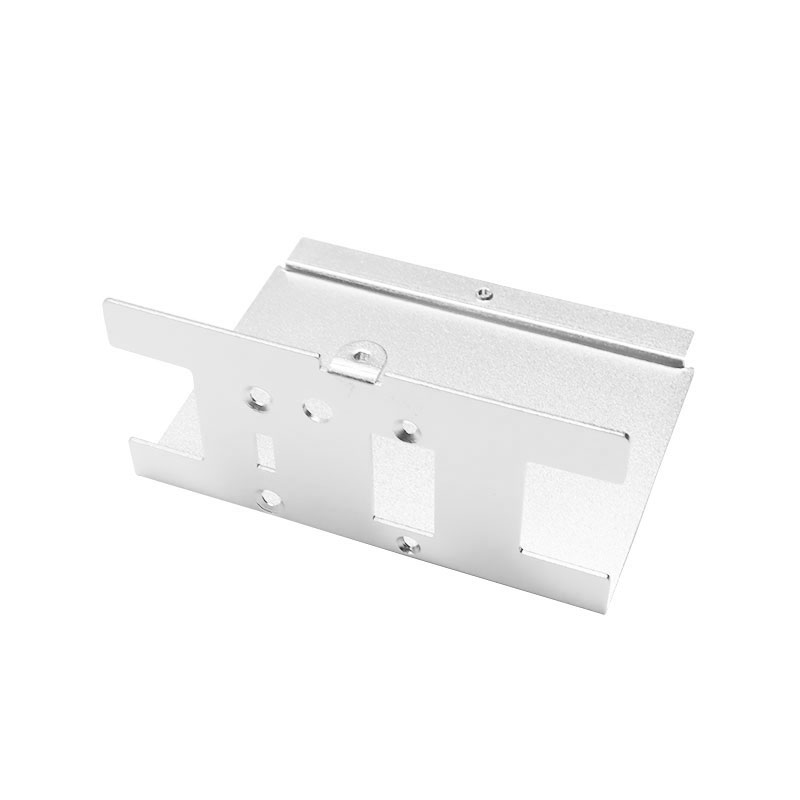

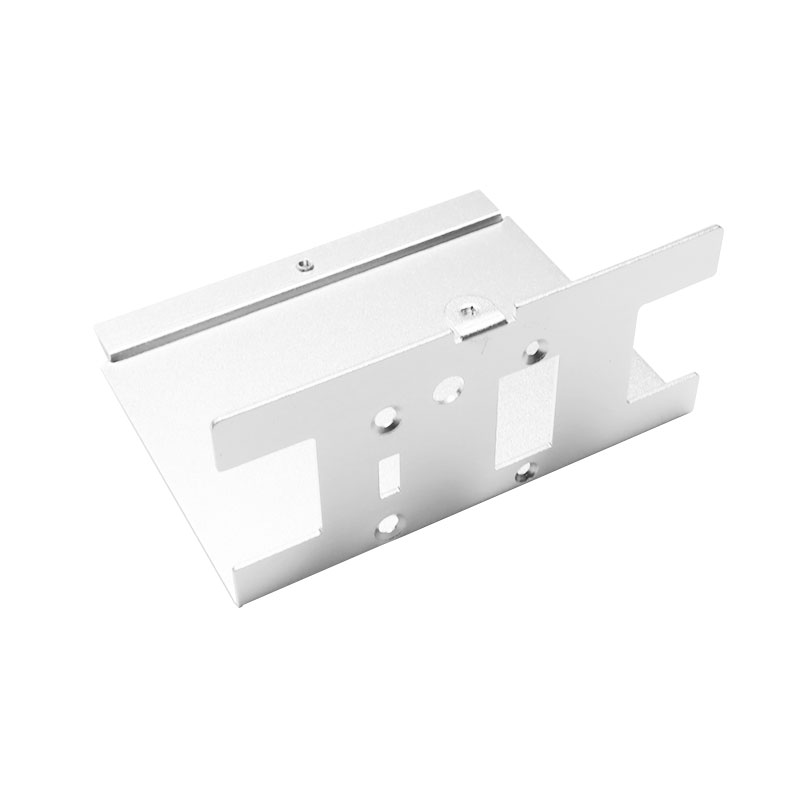

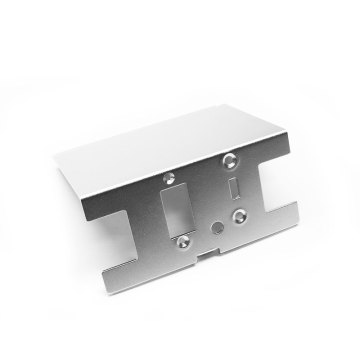

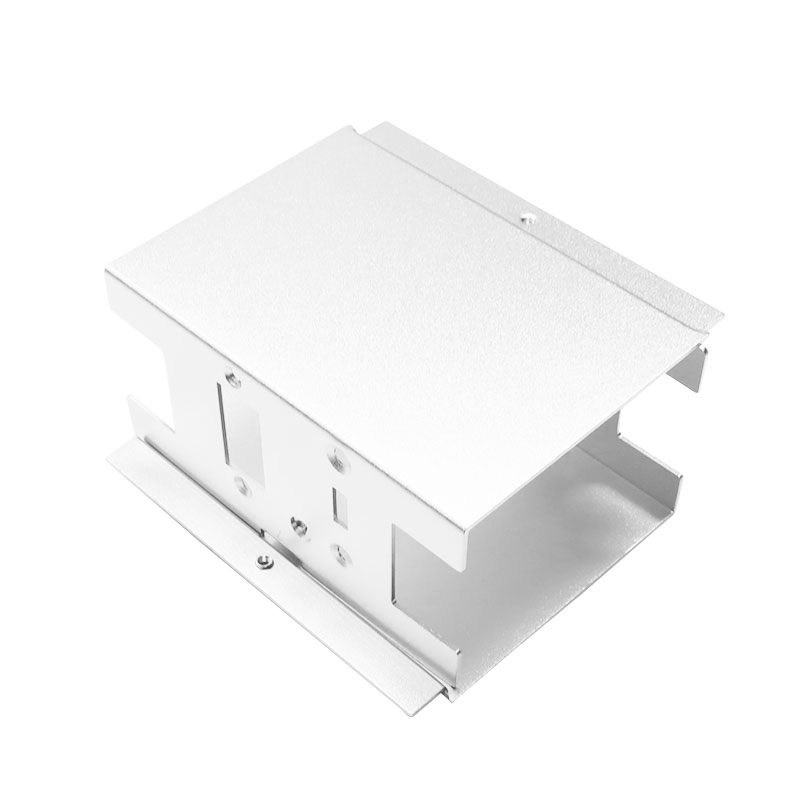

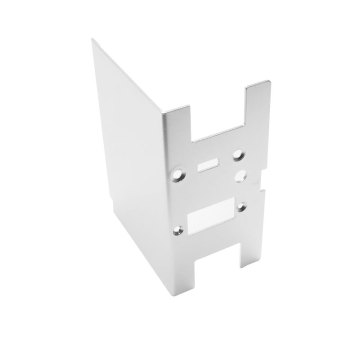

L-Shaped Metal Support with Openwork Design

This L-shaped support is crafted from a high-strength metal plate, featuring a lightweight openwork structure throughout. The top includes a long, rectangular slot enabling precise micro-adjustments for optimal mounting positioning. The strategic side openings and multiple perforation sets not only reduce overall weight but also optimize space utilization, minimizing interference with piping and eliminating the need for complex multi-component assembly.

Manufacturing Process Overview

1. CNC Laser Cutting: High-precision cutting of A3 steel plate using CNC laser technology ensures exact contouring and edge gap formation in a single stroke. The cutting accuracy reaches ±0.05 mm, establishing a reliable foundation for all subsequent manufacturing steps.
2. Milling & Bending: The sheet undergoes milling to drill through and precisely align installation holes, ensuring perfect coaxiality and smooth internal surfaces. Following this, the part is formed into an L-shape via Sheet Metal Bending. A segmented bending technique is applied to evenly distribute material stress, maintaining angular tolerances within ±0.1° and preventing cracks or deformation at the bend lines.
3. Finishing & Coating: After bending, the component is polished and ground to remove all burrs and sharp edges. Finally, a rust-resistant coating is sprayed uniformly across the surface, significantly enhancing corrosion resistance and extending service life. This comprehensive process highlights the advanced capabilities of modern Sheet Metal Fabrication.

Dongguan Shengpeng Precision Technology Co., Ltd. is a professional provider of custom CNC machining services, specializing in mature and reliable Custom Sheet Metal Fabrication. We offer flexible size adjustments based on your specific requirements, support material substitution (including stainless steel, aluminum alloy, and more), and customizable surface treatments such as electroplating, electrophoresis, and powder coating. Trust us to deliver precision, durability, and tailored solutions for your industrial needs.
