Black POM Fixed Base Milling Part – Precision Machined for High-Performance Applications

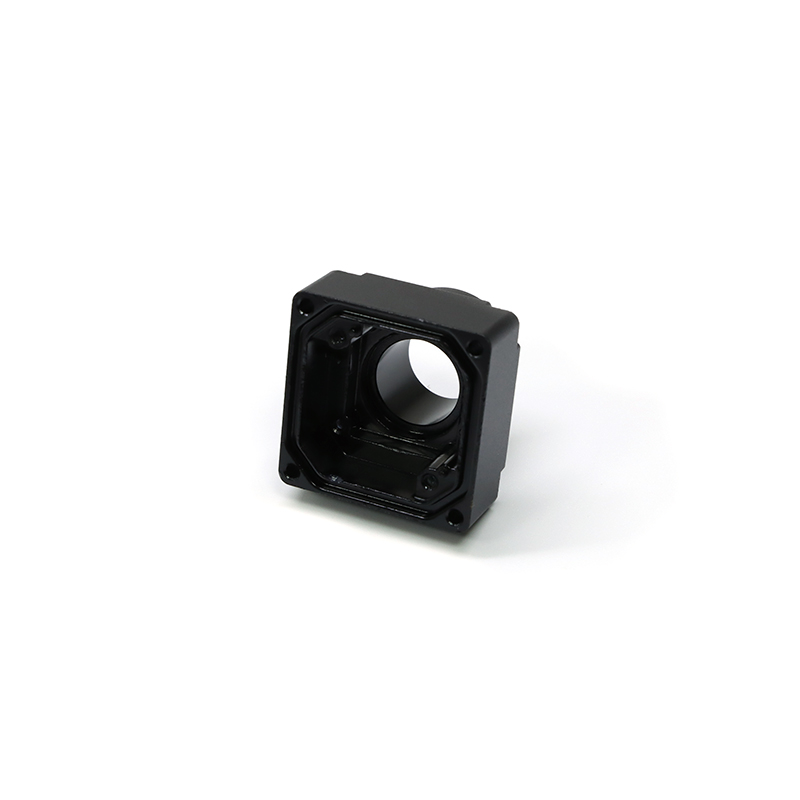

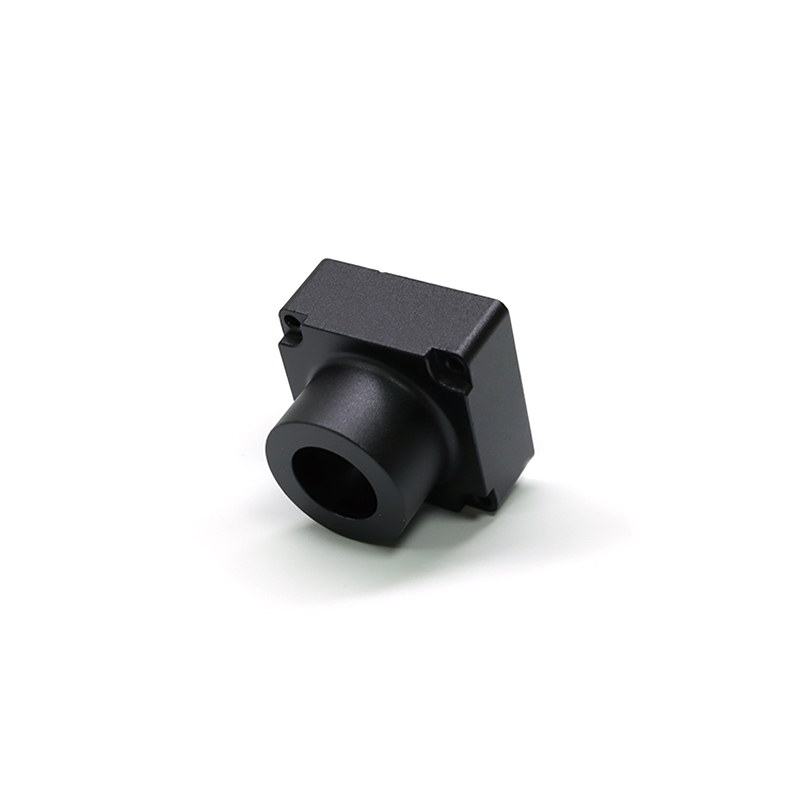

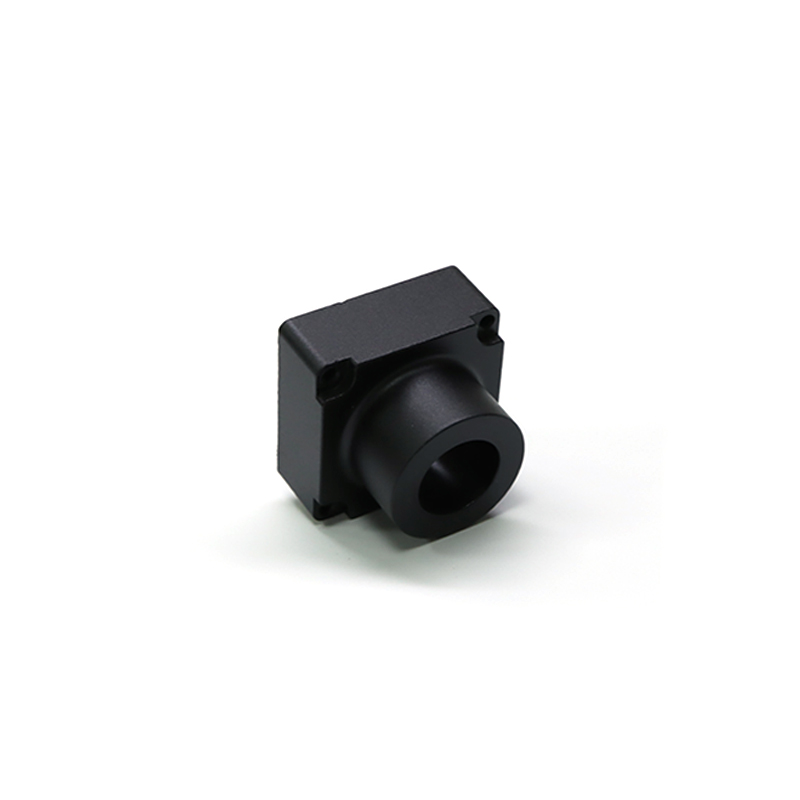

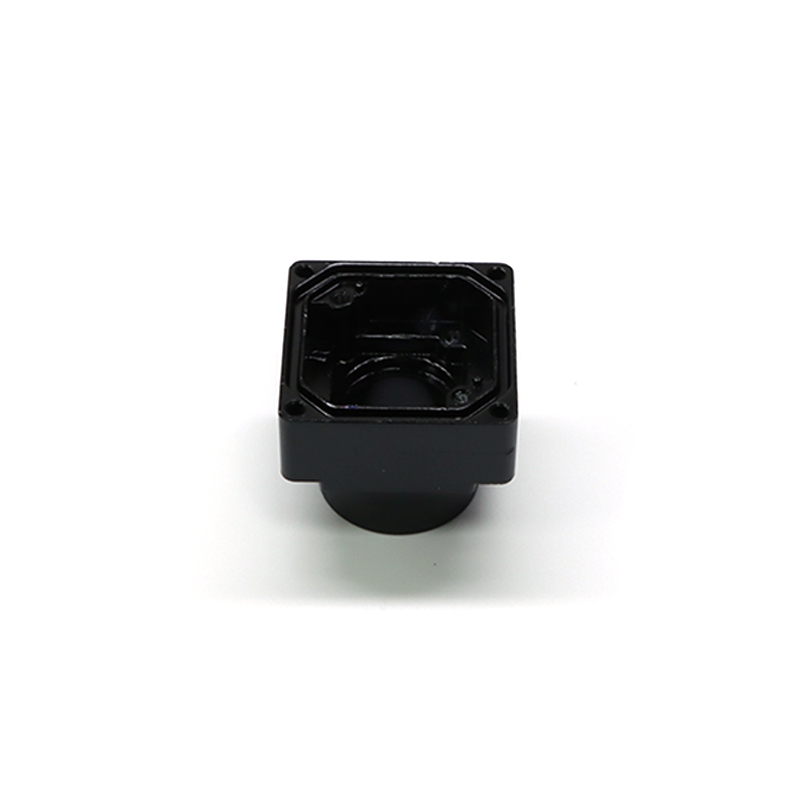

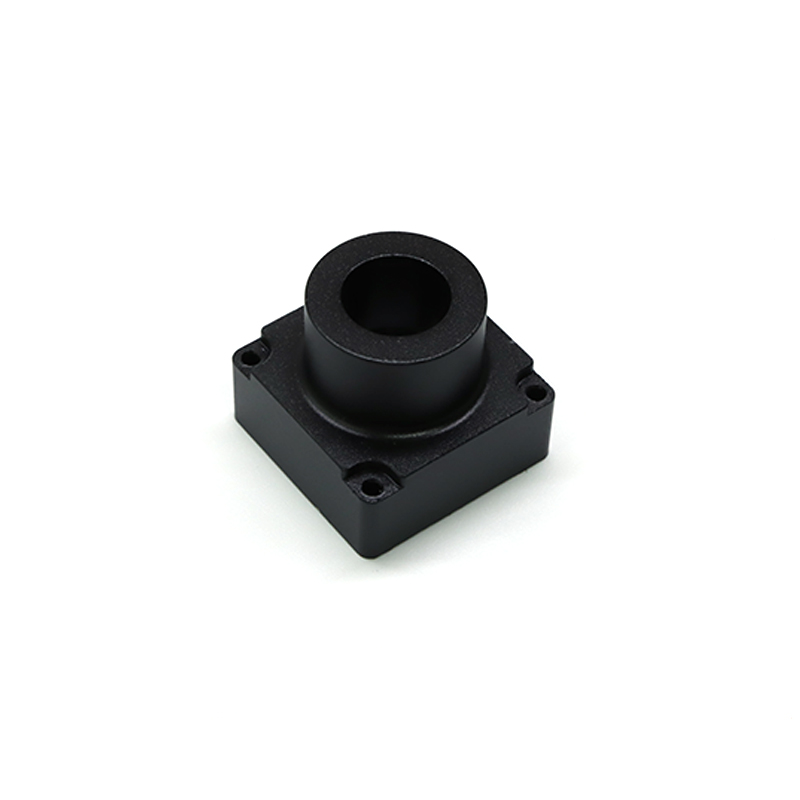

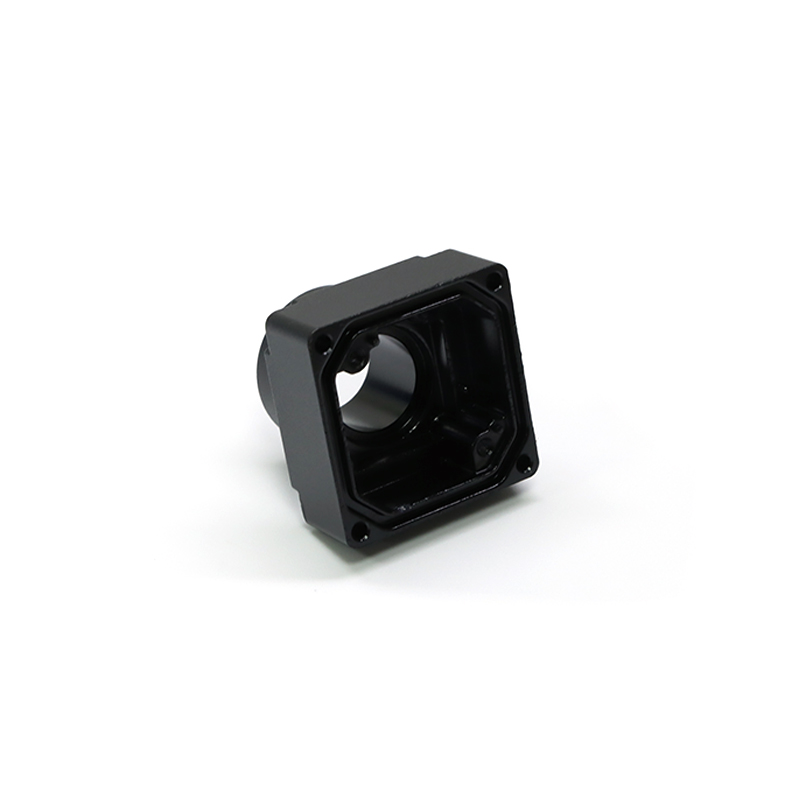

The CNC milled component is crafted from 6061 aluminum alloy, featuring a robust design composed of a square base and an integrated hollow cylinder. The surface undergoes black anodizing treatment, resulting in a uniform, smooth matte finish. This high-precision part is ideal for applications in industrial automation, optical recognition, and other environments requiring long-term reliability, accuracy, and environmental adaptability.

Manufacturing Process

First, a 6061 aluminum rod is precisely cut using a cutting machine. Then, the inner and outer diameters of the hollow cylinder are machined, along with end face and internal hole processing via turning operations. Immediately afterward, the workpiece is seamlessly transferred to a 5-Axis CNC Milling machine, where the base contour, mounting holes, and positioning slots are completed within a single clamping cycle. This integrated approach ensures coaxiality between hole positions and the cylindrical axis, as well as perpendicularity between the base plane and the cylinder end face—both maintained at the micrometer level, effectively eliminating errors caused by repeated clamping.

Post-Machining Finishing

After precision machining, manual grinding and mechanical polishing are applied to remove burrs, tool marks, and sharp edges. A multi-step pretreatment process follows—including ultrasonic cleaning, degreasing, and alkaline washing—to thoroughly eliminate oils and oxide layers. Finally, a hard anodizing process is performed, creating a durable, uniformly black-coated surface that significantly enhances hardness, wear resistance, and corrosion protection. The result is a finished product with precise dimensions and consistently stable performance.

Dongguan Shengpeng Precision Technology Co., Ltd. provides comprehensive Precision Milling Services, offering flexible customization in size parameters, material specifications, and surface treatments—including natural coloring, sandblasting oxidation, and hard anodizing—to meet diverse industrial requirements.
