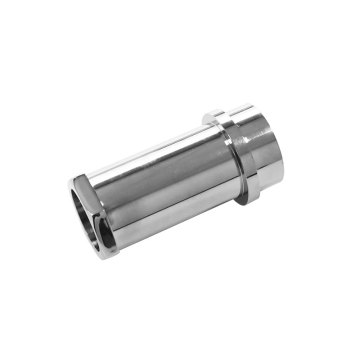

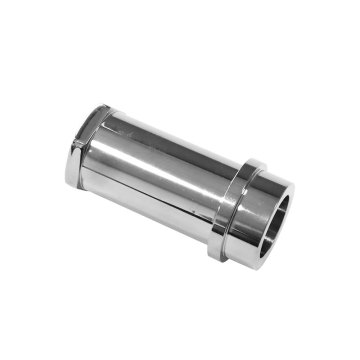

Stainless Steel Hexagonal Sleeve Machining Components

CNC Turned Parts

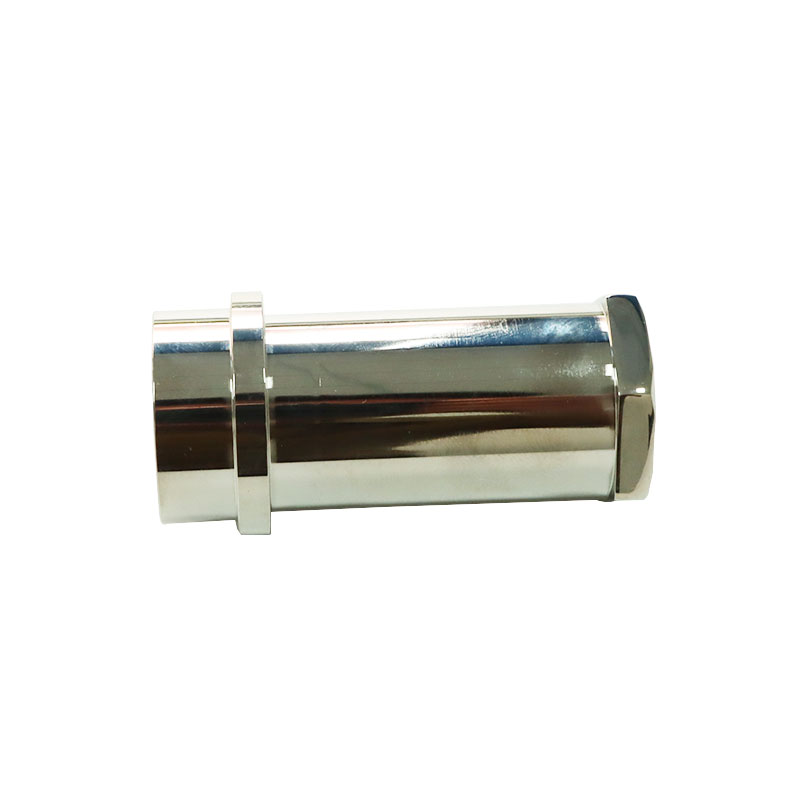

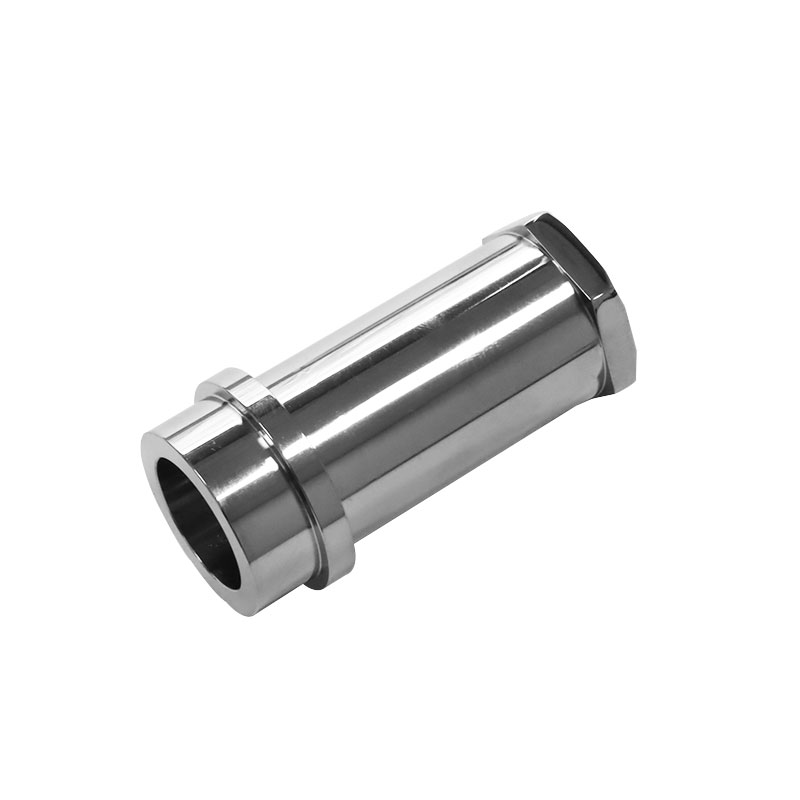

CNC turned parts are precision one-piece bushings crafted from high-carbon tool steel 42CrMo, shaped through advanced CNC Turning technology. These components feature a smooth hollow cylindrical structure with a stepped protrusion at one end for accurate positioning and installation, and symmetrical grooves at the opposite end designed for elastic clamping or serving as a fluid conduit.

1. Step 1: Material Preparation
   We begin with pre-quenched and tempered 42CrMo steel bars to ensure consistent hardness, strength, and material integrity throughout the part.
2. Step 2: Precision Machining via CNC Turning
   After initial cutting on a CNC sawing machine, the workpiece undergoes sequential rough and finish turning operations. High-precision processing is applied to the outer diameter, final surface, and internal bore, achieving coaxiality and roundness tolerances of ±0.005 mm. This ensures a stable geometric foundation for subsequent milling stages.
3. Step 3: Integrated Milling at Rotary Processing Center
   Once turning is complete, the part is directly transferred to the joint processing center of rotary milling machines. A high-speed side milling machine performs precise final positioning cuts, with strict control over width and depth accuracy. By combining turning and milling in a single setup, our CNC precision services eliminate the need for secondary clamping—reducing error risks and enhancing dimensional consistency. Additionally, a high-pressure cooling system is employed to prevent heat-induced hardening and deformation of 42CrMo during machining, ensuring a uniform, high-quality surface finish.
4. Step 4: Advanced Surface Treatment
   The component undergoes mirror polishing: mechanical polishing first removes machining marks, followed by electrolytic polishing to reduce surface roughness to below Ra 0.2 µm—delivering an ultra-smooth, high-precision finish ideal for demanding industrial applications.

As a professional manufacturer of CNC machining services, we provide comprehensive, customizable solutions tailored to your specific needs. Whether it’s dimension adjustments, material substitution, or modifications in surface treatment processes, we deliver flexible, precision-driven results. Our CNC turning expertise supports diverse industrial applications—from aerospace to medical devices—offering you a seamless, end-to-end solution from design conceptualization to final delivery.
