Dongguan Shengpeng Precision Technology Co., Ltd.
Home > Products > CNC Milling > Custom Milling Components Made from 316 Stainless Steel
Custom Milling Components Made from 316 Stainless Steel
Custom Milling Components Made from 316 Stainless Steel
Custom Milling Components Made from 316 Stainless Steel
Custom Milling Components Made from 316 Stainless Steel
Custom Milling Components Made from 316 Stainless Steel
Custom Milling Components Made from 316 Stainless Steel
Custom Milling Components Made from 316 Stainless Steel
  • Custom Milling Components Made from 316 Stainless Steel
  • Custom Milling Components Made from 316 Stainless Steel
  • Custom Milling Components Made from 316 Stainless Steel
  • Custom Milling Components Made from 316 Stainless Steel
  • Custom Milling Components Made from 316 Stainless Steel
  • Custom Milling Components Made from 316 Stainless Steel
  • Custom Milling Components Made from 316 Stainless Steel

Custom Milling Components Made from 316 Stainless Steel

    Payment Type: L/C,T/T,D/P,Paypal,D/A
    Incoterm: FOB,EXW
    Min. Order: 1 Piece/Pieces
Contact Now

Basic Info

Model No.: SP-080

Brand: SP-MFG

Origin: China

Place Of Origin: China

Color: Customized Color

Size: Customized Size

Drawing Format: pdf,igs,dwg,step,stp

Surface Treatment: Customer's Request

OEM/ODM: Accecpted

Certification: ISO 9001,CE,RoHS

Minimum Tolerance: ±0.005

Logo Engrave: Laser Engrave/CNC Engrave

Additional Info

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Payment Type: L/C,T/T,D/P,Paypal,D/A

Incoterm: FOB,EXW

Product Description

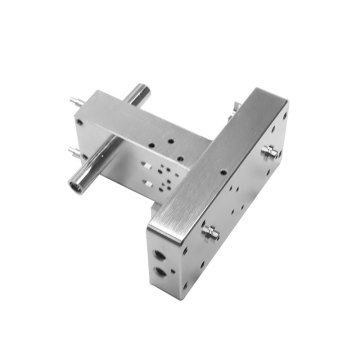

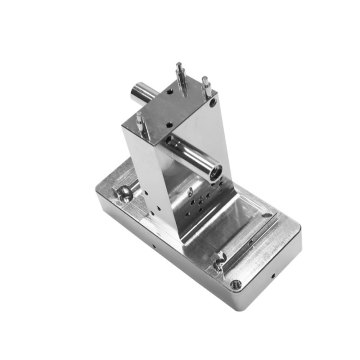

316 Stainless Steel Custom Milling Parts

Precision 316 Stainless Steel Automatic Fastening Structure – CNC Machined

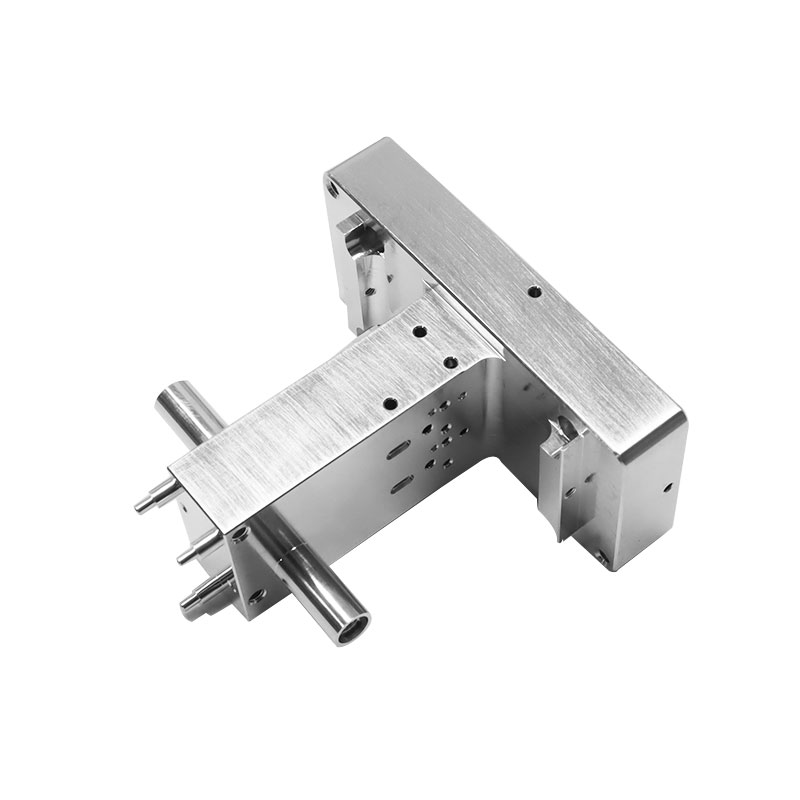

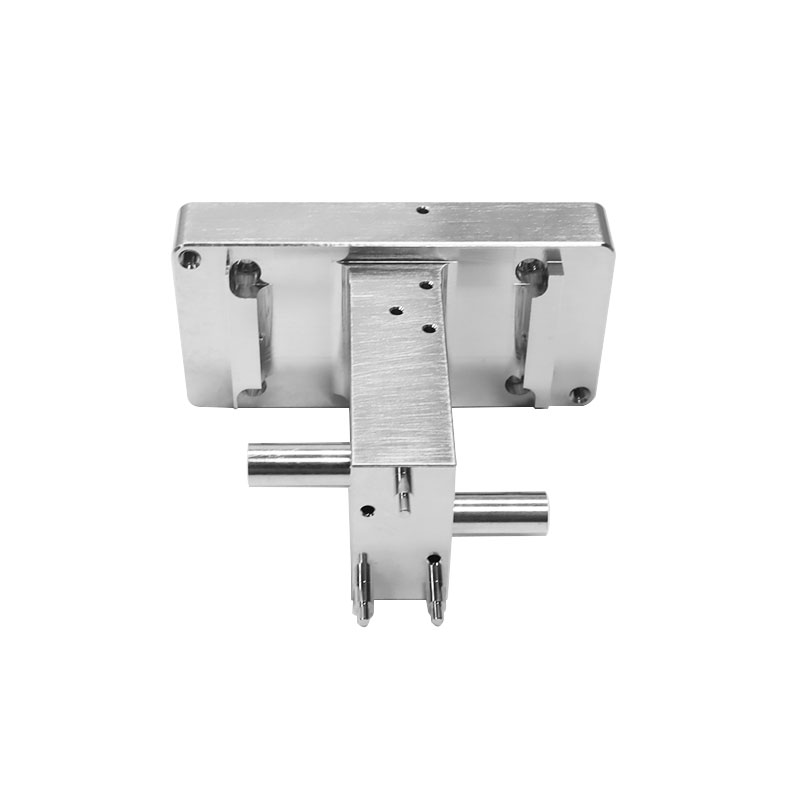

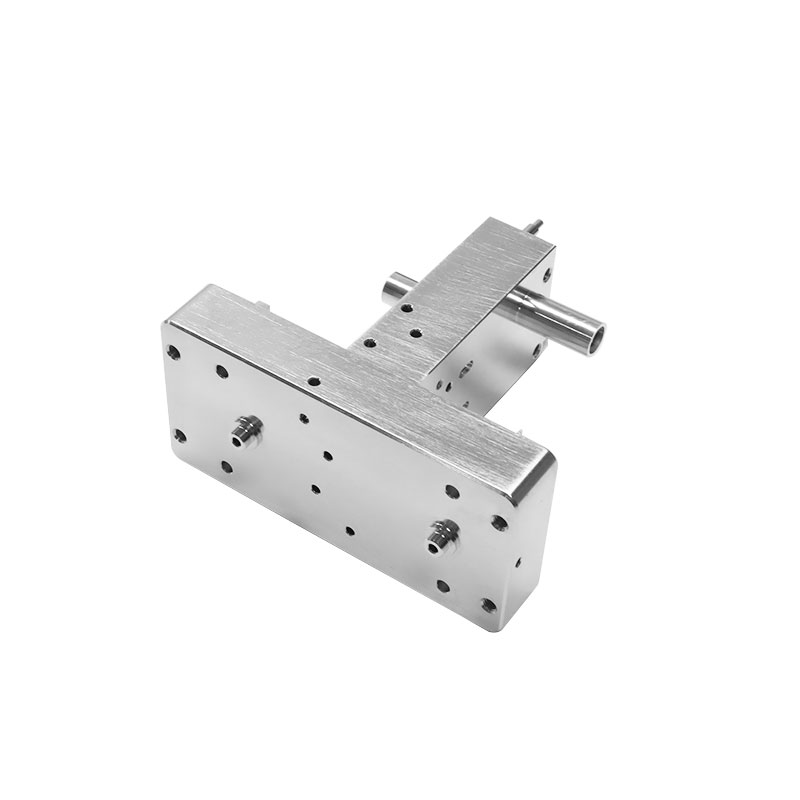

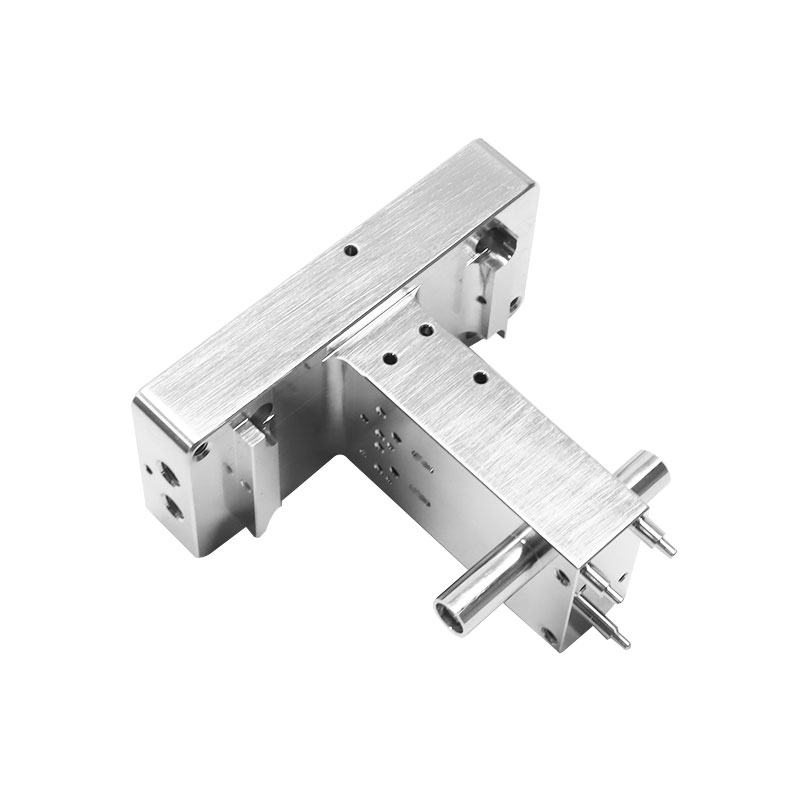

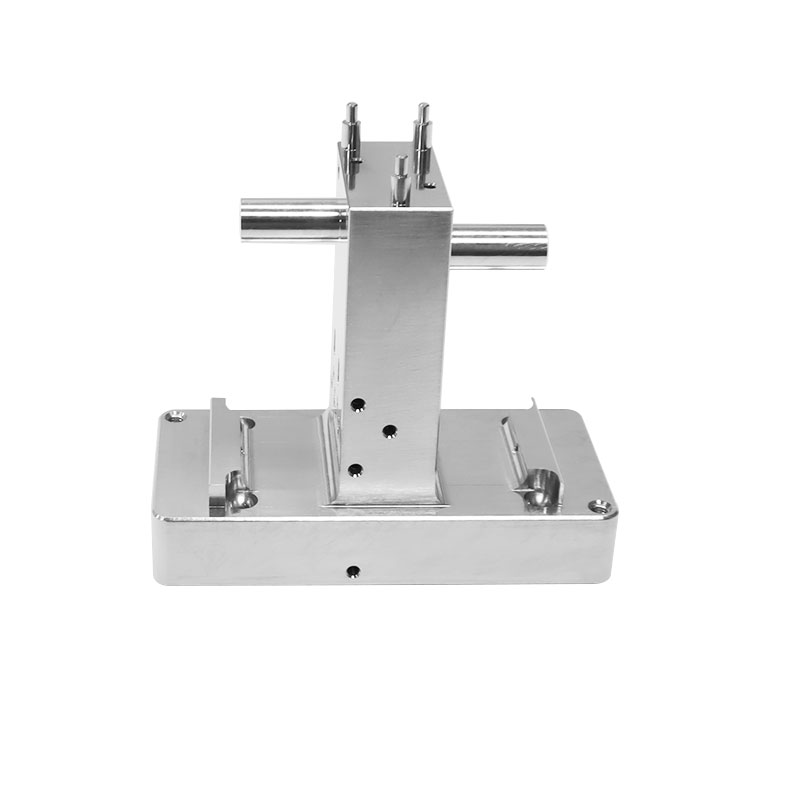

This is a non-standard, high-precision 316 stainless steel automatic fastening structure manufactured using advanced CNC Milling machines. The design features a vertical frame with an enlarged base for enhanced stability, securely fixed to equipment via screws. The vertical plate and intermediate horizontal wave form a robust support and guidance module. Multiple precision-machined holes on the plate allow for integration of sensors, cylinders, and other automation components. A top positioning clamp and shaft ensure accurate workpiece alignment and secure clamping during operation.

Online CNC Milling Service 316 Stainless Steel Custom Milling Parts

Manufacturing Process

Step 1: Precision Cutting

The 316 stainless steel rod is first precisely cut using CNC saw equipment to achieve a blank that matches the required dimensions for subsequent processing.

Step 2: Five-Axis CNC Milling

Utilizing a five-axis joint machining center and specialized fixtures, the component undergoes a complete milling process under single-setup conditions. The process includes:

  • Rough Milling: Rapid removal of excess material, leaving a 0.2–0.3 mm margin for finishing.
  • Semi-Precise Milling: Refinement of reference surfaces and contours to establish geometric accuracy.
  • Precise Final Milling: High-precision coated cutting tools are used to finalize critical features such as pin holes and mounting surfaces. Dimensional tolerances are tightly controlled at ±0.01 mm, ensuring perfect fit and alignment with the mounting interface.

Step 3: Post-Machining Treatment

After milling, the part undergoes a multi-stage surface refinement process:

  • Deburring: Removal of sharp edges and machining burrs.
  • Ultrasonic Cleaning: Thorough elimination of residual chips, oils, and contaminants.
  • Passivation: Immersion in nitric or citric acid solution to remove free iron and other impurities, promoting the formation of a dense, protective chromium oxide film. This enhances corrosion resistance and ensures long-term durability.

This comprehensive workflow highlights the synergy between high-precision CNC milling and professional post-processing techniques.

Product Categories : CNC Milling
